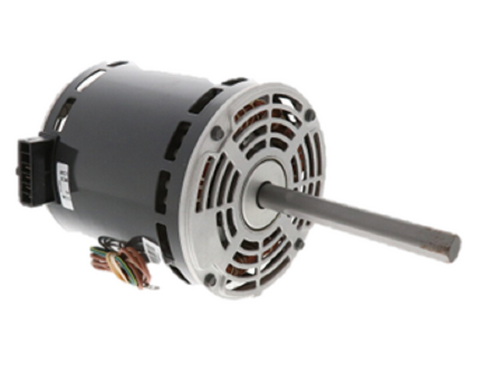

Heil Quaker ICP 1081194 Motor

The Heil Quaker ICP 1081194 is a professional-grade OEM replacement blower motor designed for high-static residential and light commercial HVAC applications. This 1 HP PSC motor operates on 208-230V single-phase power, drawing 6.3 Amps at full load. Built on a standard 48 NEMA frame size, it features a 1075 RPM rated speed with 3-speed taps, allowing for precise airflow balancing and system tuning across various furnace and air handler configurations. The motor utilizes sleeve bearings for quiet operation and a band mount design for secure installation within the blower housing. Operating with CW rotation (clockwise) from the lead end, this permanent split capacitor motor provides the reliable torque necessary to maintain static pressure. When performing a HVAC blower motor replacement, ensure your run capacitor matches the microfarad rating specified on the nameplate to prevent premature winding failure and ensure optimal efficiency.

• Multi-Speed Flexibility: Features three distinct speed taps to optimize CFM delivery based on ductwork resistance.
• Direct OEM Fit: Drop-in ICP 1081194 replacement minimizes field modifications during emergency service calls.
• Standardized Housing: The NEMA 48 frame and band mount configuration ensure compatibility with a wide range of Heil, Quaker, and Tempstar blowers.
• Efficient PSC Design: Engineered for 208-230V systems, providing a balance of starting torque and operational longevity.

What capacitor does the 1081194 blower motor require?
This 1 HP motor typically requires a 10 MFD or 15 MFD / 370V run capacitor; always verify the specific rating on the new motor's nameplate before wiring.

Can I use this to replace a 1/2 or 3/4 HP motor?
You should only replace a motor with a unit of the same horsepower or as specified by the manufacturer to avoid over-amping the circuit or damaging the blower wheel.

Is the rotation reversible on this ICP motor?
The ICP 1081194 is a CW (Clockwise) rotation motor. Verify the rotation of your existing squirrel cage before installation to ensure proper airflow direction.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
