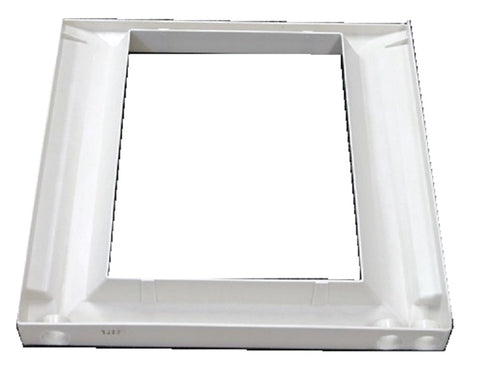

The Heil Quaker ICP 1082776 Vertical Drain Pan is a critical OEM replacement part designed for high-efficiency condensate management in specific ICP air handler and evaporator coil configurations. Built to meet rigorous factory specifications, this 19-inch vertical drain pan ensures that moisture stripped from the air during the cooling cycle is captured and diverted effectively, preventing water damage to the furnace plenum and surrounding structure. It is a direct fit for numerous International Comfort Products brands, including Heil, Tempstar, Arcoaire, and KeepRite.

Constructed from durable, heat-resistant materials, the ICP 1082776 is engineered to withstand the thermal cycling and constant moisture exposure found in modern HVAC systems. For a successful drain pan replacement, technicians should verify the unit’s cabinet width and coil orientation to ensure a proper seal and slope. This genuine HVAC replacement part maintains the original equipment’s drainage efficiency and helps mitigate the risk of biological growth or secondary drain pan overflows.

• Compatible with FCP, EEA, and EED series air handlers and coils.
• Precision-molded for vertical-flow applications to ensure optimal drainage.
• Resistant to corrosion and cracks caused by condensate acids and temperature fluctuations.
• Restores factory-standard moisture collection to protect mechanical and structural components.

What causes this drain pan to fail?
Standard wear typically involves cracks from age or clogging from biological sludge. In some cases, high static pressure or improper condensate trap installation can cause water to "blow off" the coil, bypassing the pan entirely.

Is this pan compatible with both A-coils and N-coils?
The ICP 1082776 is specifically designed for 19-inch vertical air handler cabinets. Always verify your specific model number against the manufacturer’s parts list, as drain pan dimensions are critical for a leak-free fit.

How do I ensure the new pan drains correctly?
Ensure the air handler is level or slightly pitched toward the primary drain outlet as specified by the installation manual. Clear the condensate line during replacement to prevent immediate backup into the new pan.

Item is Non Cancelable / Non Returnable

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
