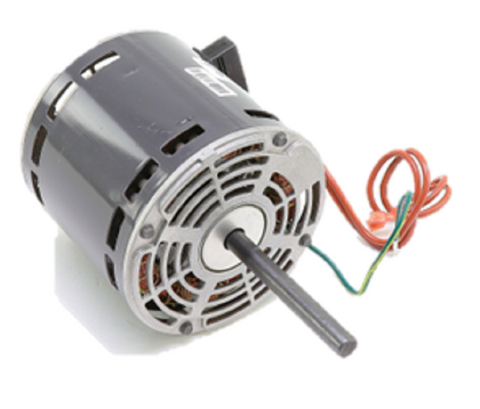

Heil Quaker ICP 1083045 Motor

The Heil Quaker ICP 1083045 Motor is a high-performance 1/2 HP blower motor engineered for demanding HVACR applications. This direct drive blower motor operates at 208-230V and delivers a consistent 1075 RPM, making it a reliable OEM replacement motor for International Comfort Products, Tempstar, and Arcoaire units. Built with a 48 NEMA frame size and featuring a 3-speed configuration, this PSC motor (Permanent Split Capacitor) allows for precise airflow tuning to match system static pressure requirements. The counterclockwise (CCW) rotation and sleeve bearing design ensure quiet, efficient operation in residential and light commercial air handlers and packaged units.

For professional contractors, the ICP 1083045 offers a robust band mount installation with a 4-inch shaft length and 1/2-inch diameter, facilitating quick change-outs in the field. This single phase HVAC motor is thermally protected and rated for 4.0 Amps, providing the durability needed for continuous bypass or return air cycles. When replacing an aging or failed Heil blower motor, utilizing this genuine ICP part ensures the unit maintains its original performance characteristics and meets manufacturer specifications for air distribution and thermal safety.

• Multi-Speed Versatility: The 3-speed capability allows for customized CFM delivery across different heating and cooling stages.
• Enhanced Durability: Equipped with sleeve bearings and thermal protection to handle high-demand duty cycles without premature failure.
• Exact OEM Fit: Designed as a direct drop-in for Heil Quaker and ICP equipment, reducing diagnostic and installation time.
• Efficient Performance: The Permanent Split Capacitor (PSC) design provides a high power factor and reliable 1075 RPM output.

What capacitor is required for the Heil 1083045 motor?
This motor typically requires a 10 MFD at 370 VAC run capacitor for optimal performance and torque.

Is this motor compatible with other brands besides Heil?
Yes, it is widely compatible with International Comfort Products brands including Tempstar, Comfortmaker, KeepRite, and Arcoaire.

What is the rotation direction and how is it determined?
The motor is rated for Counterclockwise (CCW) rotation. This is generally determined by viewing the motor from the lead end (back of the motor).

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
