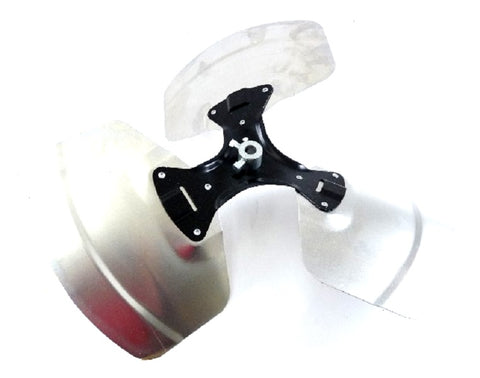

Heil Quaker ICP 1091257 Fan Blade

The Heil Quaker ICP 1091257 Fan Blade is a critical OEM replacement component designed for high-efficiency condenser units and residential HVAC systems. Engineered with a precision 18-inch diameter and a 26-degree pitch, this 3-blade aluminum fan ensures optimal CFM output while maintaining quiet operation under high static pressure. This axial fan blade features a counter-clockwise (CCW) rotation and is designed with a 1/2-inch bore on the intake side, ensuring a secure fit on standard PSC or ECM motor shafts. As an authentic ICP replacement part, it meets strict aerodynamic standards to prevent motor overloading and premature bearing wear. Technicians should verify rotation and pitch alignment during installation to ensure proper heat dissipation across the condenser coils. This durable condenser fan blade is built to withstand harsh outdoor environments, providing reliable airflow for Heil, Quaker, and other ICP-branded equipment.

Notes

Item is Non Cancelable / Non Returnable

Key Benefits

• Precision-Balanced Blades: Reduces vibration and noise, extending the lifespan of the condenser motor bearings.
• Optimized Performance: The 26-degree pitch is calibrated for maximum heat transfer efficiency in ICP cooling units.
• OEM Compatibility: Exact fit for Heil Quaker 1091257, eliminating the need for hub adjustments or field modifications.
• Corrosion-Resistant Construction: Engineered to maintain structural integrity in high-humidity and corrosive outdoor settings.

Common Questions

How do I confirm the rotation of the Heil Quaker 1091257?
This blade is rated for CCW rotation as viewed from the discharge side. Always check the rotation arrow on the existing motor or fan blade before installation.

What is the significance of the 1/2-inch bore on the intake side?
The 1/2-inch bore ensures the hub fits standard residential condenser motors. Being on the intake side, it facilitates correct positioning on the shaft for optimal air draw through the coils.

Can I use this blade on a motor with a different horsepower rating?
As long as the motor speed (RPM) and 18-inch diameter match the original specs, this blade is compatible. However, altering the pitch or diameter can lead to motor burnout.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
