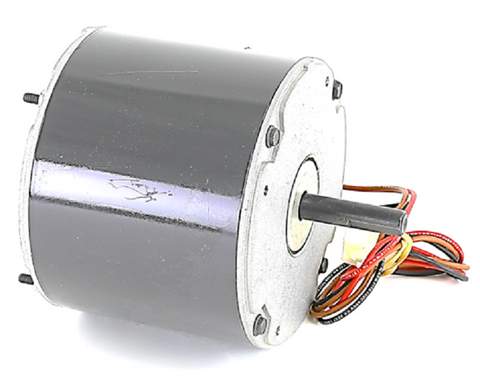

Heil Quaker ICP 1098088 Motor

The Heil Quaker ICP 1098088 Motor is a high-performance direct drive PSC condenser fan motor engineered for heavy-duty HVAC applications. This 1/3 HP condenser motor operates at 460V and 1100 RPM, providing the consistent torque required to maintain optimal airflow across condenser coils in ICP, Heil, Tempstar, and Comfortmaker units. As a NEMA 48 frame motor, it features a standard 5.6-inch diameter and a 1/2-inch shaft, ensuring a precise fit for residential and commercial 380/460V single-phase systems.

Technicians often specify the ICP 1098088 replacement motor for its thermally protected design and Class B insulation, which enhance reliability in high-ambient environments. This permanent split capacitor motor utilizes a 5 MFD / 370V run capacitor (sold separately) to achieve its 0.74 Amp rated efficiency. Whether you are performing a service call on a Heil condenser fan motor or upgrading an older system, this 1-speed, CW rotation motor offers a robust sleeve bearing construction and versatile band/thru-bolt mounting for seamless field installation.

• OEM Compatibility: Exact replacement for Heil Quaker ICP 1098088, ensuring no modifications are needed during installation.
• Voltage Engineering: Specifically wound for 460Vac single phase power, ideal for commercial HVAC infrastructures.
• Thermal Protection: Built-in internal overload protection prevents winding burnout during over-current events.
• Standardized Frame: Features a 48 NEMA frame size and 1/2" diameter shaft for industry-standard fan blade matching.
• Quiet Operation: The sleeve bearing and 1100 RPM 1-speed design minimize vibration and audible noise levels.

• What capacitor is required for the 1098088 motor? This motor requires a 5 MFD @ 370VAC run capacitor for proper operation. We strongly recommend replacing the capacitor whenever a new condenser motor is installed to prevent premature failure.
• Can I use this to replace an 825 RPM motor? No, you should match the original RPM. Installing an 1100 RPM motor where an 825 RPM was specified can overload the motor or cause incorrect static pressure across the coils.
• How do I verify the rotation direction? This is a CW (Clockwise) rotation motor as viewed from the lead end. Always check the original motor's rotation before ordering.
