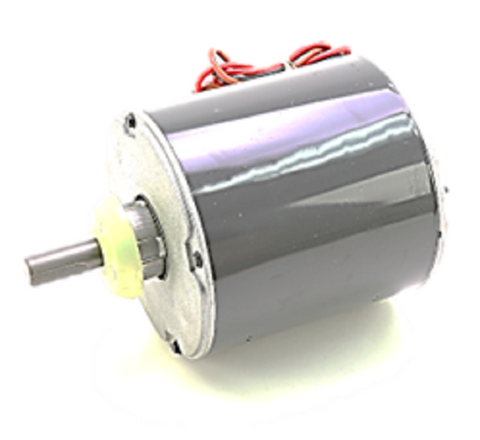

Heil Quaker ICP 1099697 Motor

The Heil Quaker ICP 1099697 Motor is a high-performance, 3/4 HP condenser fan motor engineered for demanding outdoor environments. Operating at 1100 RPM, this 208-230V single phase motor (model K55HXHJK8694) is an OEM replacement motor for ICP, Heil, Tempstar, and Comfortmaker condensing units. Featuring a 48 frame size and CW rotation, this Permanent Split Capacitor (PSC) motor draws 5.1 Amps and utilizes sleeve bearings for quiet operation. As a technical HVAC replacement part, it includes a 5/8 inch shaft and is designed for band mount configurations. Professional installation is recommended to ensure correct condenser motor wiring, typically requiring a 12.5 MFD / 370V capacitor (sold separately) to maintain peak efficiency. This industrial-grade AC motor (cross-reference 116H02) provides the necessary torque and reliability to restore optimal airflow across the condenser coils, preventing system overheating and extending the life of the compressor.

Key Benefits:

• Optimized Performance: Fixed 1100 RPM speed provides consistent airflow for efficient heat rejection.
• OEM Compatibility: Precision-fit for Heil Quaker and ICP brand equipment to ensure seamless integration.
• Durable Construction: NEMA 48 frame and PSC design built to withstand high ambient temperatures.
• Versatile Application: Standard band mount design accommodates various condenser housing setups.

Common Questions:

What rotation is required for this motor?
This specific 1099697 model is designed for CW (Clockwise) rotation when viewed from the lead end. Always verify your fan blade pitch matches the rotation before installation.

Does this motor include the run capacitor?
No, the 12.5/370 capacitor required for this 3/4 HP motor is sold separately. Tech Tip: Always replace the capacitor when installing a new motor to prevent premature winding failure.

Will this motor replace other ICP part numbers?
Yes, it is the direct OEM replacement for several Heil Quaker and International Comfort Products units. Check your existing motor plate for the manufacturer part number K55HXHJK8694 for exact matching.
