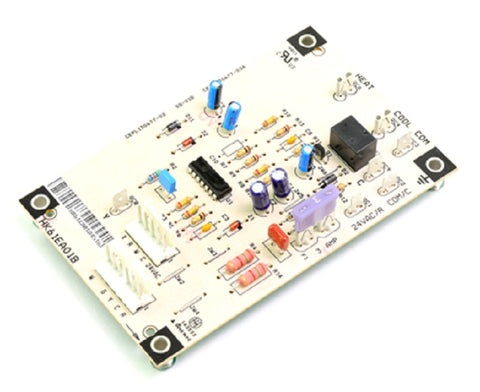

The Heil Quaker ICP 1177800 X-13 Circuit Board is a critical OEM interface component designed to manage blower motor communication in high-efficiency HVAC systems. Engineered specifically for ICP furnace control board replacement applications, this module translates thermostat calls into precise speed taps for X-13 constant torque motors. As a veteran-grade part used across Heil, Tempstar, and Comfortmaker residential packaged units, it ensures the HVAC blower motor control logic maintains optimal CFM delivery across various static pressure conditions. By regulating the voltage signals to the motor?s internal inverter, the 1177800 interface board prevents erratic cycling and protects the blower assembly from premature failure due to signal degradation.

Professional technicians recognize the Heil Quaker 1177800 as the direct successor to legacy part number 1173823, offering streamlined integration with ICP replacement parts. This board is essential for restoring factory-spec airflow in compatible Heil Quaker heat pump and AC units, such as the PGF324060 and PGN424040 series. Its robust circuitry is built to withstand the thermal demands of tight control cabinets, providing the HVAC circuit board repair reliability required for demanding seasonal transitions.

• OEM Compatibility: Direct-fit replacement for Heil, Quaker, ICP, and Tempstar equipment, eliminating the need for field modifications or bracket fabrication.
• Motor Protection: Correctly interfaces with X-13 motor drive electronics to prevent high-voltage spikes and communication errors.
• Optimized Performance: Restores specific factory-programmed speed taps to ensure the system meets its rated SEER and AFUE efficiency.
• Drop-in Installation: Designed with standard polarized plugs and terminal spacing to match original wiring harnesses, reducing diagnostic and high-voltage labor time.

• Does this board replace common X-13 motor failures? While this board controls the motor, always bench-test the motor?s internal module first. If the motor is getting high voltage but no low-voltage signal from the board, the 1177800 is the likely culprit.
• Is this board compatible with ECM 2.3 or 3.0 motors? No, this specific part is designed for the 5-pin configuration found on X-13 (Constant Torque) motors and should not be used with variable-speed ECMs.
• Can I use this on other ICP brands? Yes, this board is interchangeable across the ICP family, including Arcoaire and Comfortmaker, provided the part number matches the original manufacturer specifications.
