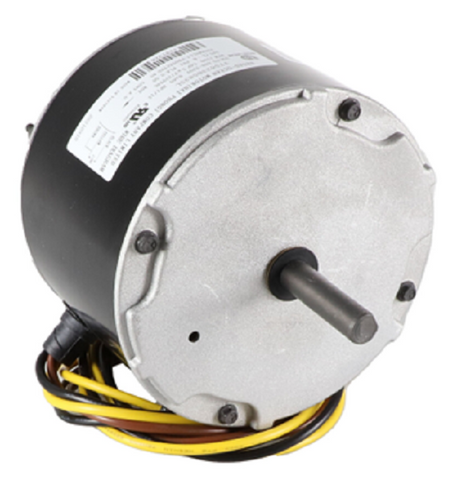

Heil Quaker ICP 1191326 Motor

When you're out in the field and a condenser fan fails on a Heil or ICP unit, you need an exact-match OEM replacement motor to get the system back within spec. The Heil Quaker ICP 1191326 motor is a 1/12 HP, 1100 RPM unit engineered specifically for residential and light commercial condenser sections. This motor serves as the 1172706 direct replacement, ensuring that the electrical load and physical profile match the original factory assembly. Operating on 208-230v 1ph power, it delivers the necessary torque for consistent heat dissipation across the coils without over-amping the circuit. As a veteran tech, you know that keeping the condenser fan motor at the correct RPM is critical to maintaining head pressure; this 1100 RPM HVAC motor provides the precise airflow required. It features a CW (clockwise) rotation, a standard 1/2" shaft diameter, and requires a 5MFD 370V capacitor for proper starting and operational efficiency.

• OEM Compatibility: Serves as the verified 1191326 replacement for 1172706, fitting brands like Heil, Comfortmaker, and Tempstar.
• Optimized Performance: The 1/12 HP fan motor maintains factory-specified airflow for reliable refrigerant cooling.
• Rugged Build: Designed with Class B insulation and thermal protection to withstand high-ambient outdoor conditions.
• Direct Drop-In: Matches existing mounting patterns for faster installs and reduced downtime on the job site.

What capacitor does the 1191326 motor require?
This motor is designed to run with a 5MFD at 370V run capacitor. We always recommend replacing the capacitor when swapping the motor to prevent premature failure.

Can I use this motor to replace the 1172706 part number?
Yes, the ICP 1191326 is the official direct replacement for the legacy 1172706 model and is fully compatible with the same mounting and power leads.

Is this a multi-speed motor?
No, this is a single-speed, 1100 RPM motor intended for specific condenser fan applications.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
