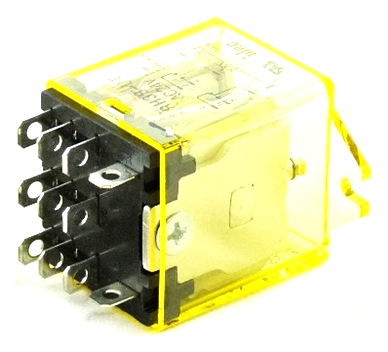

Heil Quaker ICP 1065280 Relay

The Heil Quaker ICP 1065280 Relay is a heavy-duty 24V 3PDT relay engineered for reliable switching in high-demand residential and commercial HVAC units. Featuring a 3-pole double-throw configuration, this OEM replacement part provides the versatility required for complex control circuits, allowing a single 24V signal to manage three independent circuits simultaneously. This makes it an essential component for technicians servicing International Comfort Products (ICP) equipment, including brands like Tempstar, Comfortmaker, and Arcoaire.

Built with durable silver-cadmium oxide contacts, this switching relay is designed to handle the inductive loads typical of blower motors and fans without premature pitting or welded contacts. The low voltage coil ensures seamless integration with standard 24V transformers, providing the necessary isolation between sensitive control boards and high-voltage line components. For contractors, the 1065280 offers an exact-fit solution that eliminates field modifications during HVAC relay replacement, maintaining the system's original wiring integrity and operational sequence.

• 3PDT Configuration: Provides three sets of changeover contacts for advanced control of multi-stage systems.
• OEM Compatibility: Specifically designed for Heil Quaker and ICP furnace and air conditioning models.
• Reliable Switching: Handles 24V control signals with high-tolerance internal coils for consistent armature engagement.
• Industrial Build: Engineered to withstand the thermal cycling and vibration found in HVAC cabinet environments.

Can I use this relay to replace a DPDT 24V relay?
While a 3PDT can often replace a DPDT by leaving the third pole unused, always verify terminal spacing and amperage ratings to ensure the 1065280 fits the existing footprint and load requirements.

What are the symptoms of a failing 1065280 relay?
Common signs include buzzing from the control box, a blower motor that fails to engage despite a 24V call, or intermittent operation caused by carbon buildup on the internal contacts.

Is this relay compatible with non-ICP brands?
If the specifications match (24V coil, 3PDT, and appropriate contact amperage), it can function in other systems, though it is specifically optimized for Heil Quaker and ICP platforms.
