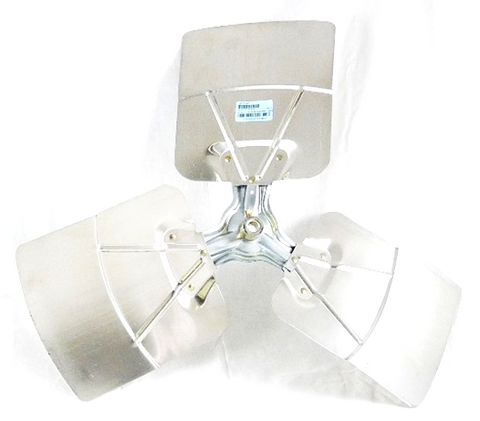

Heil Quaker ICP 1070047 Fan Blade

The Heil Quaker ICP 1070047 is a high-performance 26-inch condenser fan blade designed specifically for heavy-duty HVACR applications. As a veteran-grade ICP replacement fan blade, this unit features a 28-degree pitch and a 3-blade configuration engineered to move significant air volume while maintaining static pressure balance. The CCW rotation (counter-clockwise) is essential for correct airflow across the condenser coils, ensuring the compressor operates within safe thermal limits. Built with a 5/8-inch bore positioned on the discharge side, this blade secures firmly to the motor shaft, reducing vibration and preventing premature bearing wear. For contractors performing a Heil Quaker parts lookup, this OEM-spec 1070047 blade matches the exact mechanical footprint required for large-tonnage condensing units. Integrating this 26-inch 3-blade fan ensures your system maintains factory-spec efficiency and heat rejection, preventing the high-head pressure issues common with cheap, generic alternatives. Trust this condenser motor fan blade for critical repairs where exact dimensions and pitch are non-negotiable.

• OEM Precision: Engineered as a direct ICP 1070047 substitute to ensure perfect balance and airflow.
• Optimized Pitch: The 28-degree pitch provides the necessary lift to pull air through dense coil fins effectively.
• Durable Construction: Heavy-gauge materials resist flexing and fatigue under the high RPMs of outdoor fan motors.
• Discharge Side Hub: The 5/8-inch bore configuration allows for precise vertical alignment on the motor shaft.

Common Questions

What is the rotation of the 1070047 fan blade?
This specific blade is CCW rotation (Counter-Clockwise) as viewed from the discharge side. Always verify your motor's lead-end rotation before installation.

Will this blade fit any 5/8-inch motor shaft?
While the 5/8-inch bore is standard for many 1/2 HP and 1 HP motors, you must also confirm that the 26-inch diameter and 28-degree pitch match the shroud dimensions and motor load ratings of your specific unit.

Does the hub location matter?
Yes, this blade features the hub on the discharge side. Proper hub orientation is critical for maintaining the correct distance between the blade and the motor to prevent interference and ensure efficient cooling.

This item is not eligible for free shipping.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
