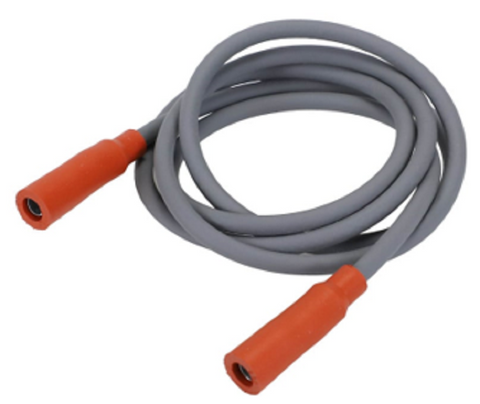

Honeywell 32004766-004 Ignition Cable

Ensure reliable ignition for your commercial burner assemblies with the Honeywell 32004766-004 Ignition Cable. This 60-inch high-voltage HVAC spark igniter lead is purpose-built for the Honeywell Q624 solid-state spark generator and discontinued Q652 series. As a veteran-grade OEM replacement ignition cable, it features straight boots on both ends to facilitate a secure, direct connection between the transformer and the pilot electrode, preventing voltage leaks and ensuring a consistent spark in high-humidity environments up to 95% RH. This cable is rated for 25kV dielectric strength at temperatures up to 482?F (250?C), making it ideal for the demanding thermal conditions of industrial gas burners. Whether you are performing a routine burner service or troubleshooting a weak spark, this 60-inch lead provides the necessary length and dielectric insulation required for safe interrupted ignition applications. The 32004766-004 is functionally identical to the 32004766-004/U, offering a seamless fit for standardized burner mounting configurations.

• Broad Compatibility: Engineered specifically for the Honeywell Q624A Solid State Spark Generator and legacy Q652 series units.
• High-Temperature Durability: The 60-inch ignition lead is rated to withstand extreme operating temperatures up to 482?F.
• Maximum Spark Recovery: Features straight boot connectors for a low-resistance path, ensuring 200mJ of energy delivery per spark.
• Moisture Resistant: Designed to remain impervious to humidity, preventing tracking and flashover in damp mechanical rooms.

Is the 32004766-004 compatible with standard transformers?
This cable is specifically designed for the Q624 and Q652 solid-state generators. While it utilizes a standard terminal nut connection, always verify lead length and boot configuration for your specific electrode assembly.

What is the difference between the 32004766-004 and the /U suffix?
There is no functional difference; the "/U" denotes a single-unit retail package for Honeywell Tradeline wholesalers, while the base number is the factory-spec identifier.

Can I trim this cable to a shorter length?
It is not recommended to modify factory-sealed high-voltage ignition cables as it compromises the straight boot seal and dielectric integrity. Utilize the full 60-inch length or select the 24-inch variant (32004766-001) for shorter runs.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
