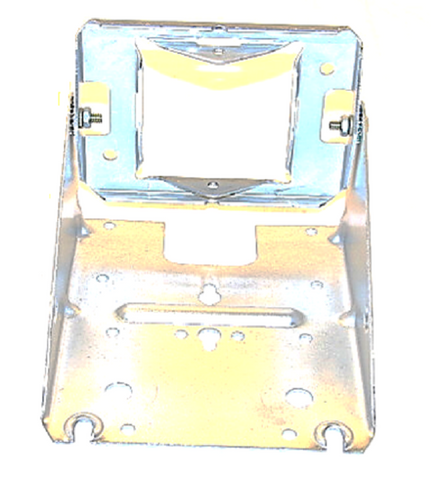

Honeywell 14004062-001 Mounting Bracket

Engineered for high-performance pneumatic systems, the Honeywell 14004062-001 External Trunnion Mounting Bracket is a critical component for technicians installing or servicing heavy-duty damper actuators. This industrial-grade mounting hardware provides the structural stability required for precise HVAC damper control in medium to large-scale commercial air handling units. Specifically designed as an external trunnion bracket, it allows for versatile orientation and secure fastening of the actuator to the damper frame or ductwork, ensuring the rolling diaphragm and piston-type mechanisms operate without mechanical binding.

This genuine Honeywell actuator accessory is fully compatible with the MP918A and MP918B pneumatic actuators, as well as MP909E and MP909H models. By utilizing this HVAC actuator mounting bracket, contractors can ensure exact alignment of the pushrod and crankarm, which is essential for maintaining the tight operating tolerances and stroke accuracy these units are known for. Built to withstand the rigors of mechanical rooms, the 14004062-001 facilitates a reliable interface between the pneumatic damper actuator and the ventilation system, supporting long-term performance in demanding environments.

• Universal Compatibility: Seamlessly integrates with MP918 and MP909 series actuators, supporting both proportional control and positive positioner configurations.
• Robust Construction: Manufactured from high-strength materials to prevent bracket flex, ensuring consistent damper blade positioning under high torque.
• Simplified Field Installation: The trunnion-style design allows for external mounting, providing technicians with easier access for linkage adjustments and maintenance.
• Enhanced HVAC Efficiency: Maintains precise stroke control, which is vital for effective sequencing in complex variable volume terminal units.

• Is this bracket compatible with internal mounting applications? No, the 14004062-001 is an external trunnion mounting bracket. For internal N.C. or N.O. requirements, specified internal trunnion brackets must be used.
• Does this include all necessary mounting screws? This part number typically identifies the bracket itself; standard HVAC mounting hardware kits (such as the 14004237-002) are often ordered separately for full assembly.
• Can I use this for smoking-rated dampers? Yes, when paired with UL classified MP918 actuators, this bracket supports the reliable operation required for smoke and leakage-rated damper systems.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
