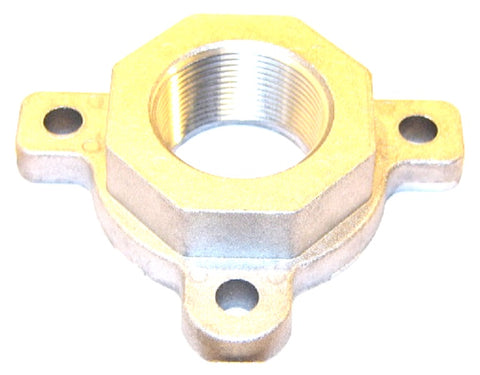

Honeywell 32000109-004 Pipe Adapter

The Honeywell 32000109-004 Pipe Adapter is a critical component for technicians configuring high-capacity gas manifolds. Precision-engineered with a 1 1/2 inch NPT female thread, this flange adapter allows for the seamless integration of standardized piping into specialized valve configurations. This specific model is designed for a secure, leak-proof valve train assembly, ensuring pressure integrity when coupled with high-performance gas valves. It is a direct fit for Honeywell V5097, V4297, and V5197 Series valves, making it essential for commercial or industrial combustion system maintenance and installation. This part is functionally identical to the 32000109-004/U listing, manufactured to identical tolerances. When dealing with gas valve flange adapters, maintaining a proper seal at the 1.5-inch NPT interface is vital for safety and code compliance. Utilizing this specific Honeywell flange adapter ensures compatibility with existing hardware without requiring field modifications to the valve body or supply line.

• Precise Tolerance: Features a 1 1/2" NPT threaded connection for industrial-grade gas piping.
• System Compatibility: Specifically engineered for Honeywell V5097 series gas valves, ensuring a perfect mechanical fit.
• Durable Construction: Built to withstand the thermal and mechanical stresses common in industrial HVACR valve train environments.
• Cross-Reference Utility: Fully replaces and is interchangeable with version 32000109-004/U.

Common Questions

What Honeywell valve series is this adapter compatible with?
This adapter is specifically designed to fit the V5097, V4297, and V5197 series gas valves. It provides the necessary transition between the valve body and the 1.5-inch NPT piping.

Does this pipe adapter include the necessary mounting bolts and O-rings?
Hardware requirements vary by valve body size. Ensure you have the correct gaskets or O-rings specified for the V5097 or V5197 series to maintain a gas-tight seal at the flange interface.

Can I use the 32000109-004 for high-pressure gas applications?
This adapter is rated for the standard operating pressures of the compatible Honeywell valve series. Always verify that your specific manifold pressure does not exceed the maximum rating of the valve and flange assembly.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
