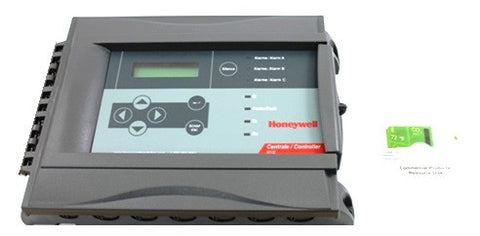

Honeywell Analytics 301-C-DLC-BIP Controller

301C Controller with datalogger, BACnet/IP output, ABS polycarbonate enclosure

Honeywell Analytics 301C-DLC Gas Detection Controller with Datalogging – BACnet/IP Output

The Honeywell Analytics 301C-DLC Gas Detection Controller is a high-performance solution designed to ensure continuous monitoring and safety in various applications, including refrigeration, laboratories, transportation, cold storage, pharma, medical, and agriculture.

Key Features:

• Advanced Gas Detection: Monitors up to 96 inputs/outputs across three channels, with a range of 2000 feet (600 meters) maximum distance to transmitters.
• Reliable Communication: BACnet/IP output for seamless communication and integration with existing control systems.
• Datalogging: Built-in datalogger for tracking and storing vital data for future analysis.
• Versatile Mounting: Designed for wall mounting, making it suitable for a wide range of environments.
• Full Visual & Audible Alerts: Features blinking LEDs for operation status, alarm levels, signal transmission, and failures, along with an audible alarm (65 dB at 3 ft) for immediate attention.
• Programmable Alarm Levels: Multiple fully programmable alarm levels with time delays (0-99 minutes), customizable to your needs.
• Capacity for Expansion: Supports up to 96 relay modules and up to 128 zoning groups for large-scale systems.
• Temperature & Humidity: Operates in a wide range of conditions, from -4°F to 122°F (-20°C to 50°C) and up to 95% RH (non-condensing).
• Compact Design:
  • 301C-DLC: 8.0" H x 11.0" W x 2.7" D
  • 301R: 8.0" H x 9.5" W x 2.5" D
• CSA Approved: Ensuring compliance with industry safety standards.

Applications:

• Refrigeration systems
• Laboratory environments
• Cold storage and pharma facilities
• Medical and agricultural applications

Additional Benefits:

• Easy Installation & Setup: Pre-programmed at the factory, with menu-driven adjustments available in the field.
• Data Integrity: Keeps track of up to 768 events for effective monitoring and reporting.
• Built-in Protection: Triggers alarms or activates ventilation systems to prevent hazardous conditions from developing.

Warranty: 1-year limited warranty

301-C-DLC-BIP is the direct replacement for VA301C-DLC-BIP
