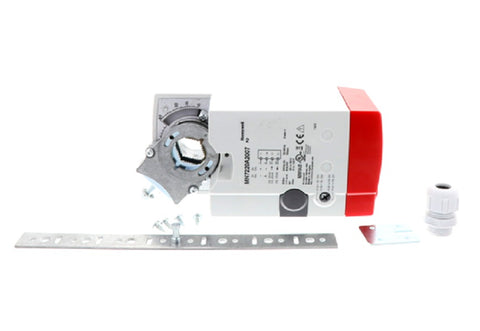

Honeywell MN7220A2007 Actuator

Non Spring Return Direct Coupled Actuator, 24Vac, 175 Lb-In Torque, Nema 2 Rated, 0/2-10Vdc, 4-20Ma with 500 Ohm Resistor Control Signal, Manul Declutch Mechanism, 100K Ohm Voltage Input Impedance, 500 Ohm Current Input Impedance, 95 ± 3 Degree Rotational Stroke, 95 Second Nominal Drive Timing, 3/8"-11/16" Square or 3/8"-1.06" Round Damper Shafts, -5-140 Degree Ambient Temperature Rating, 5-95%RH Non Condensing Oeprating Humidity Range, Includes Mounting Bracket, Self Centering Shaft Adapter

Honeywell MN7220A2007 Actuator – High-Performance Analog Control

The Honeywell MN7220A2007 Actuator is a high-torque, analog control actuator designed for precision in HVAC applications. With a torque rating of 175 in-lb, this actuator ensures reliable operation in demanding environments.

Key Features:

✅ Torque: 175 in-lb for robust performance
✅ Control Signal: Analog for precise modulation
✅ Supply Voltage: 24 VAC (Nominal), 21-27 VAC (50/60 Hz), or 24 VDC
✅ Motor Type: Brushless DC with synchronous operation and magnetic clutch
✅ Rotation Range: 95° ± 3° for optimal control
✅ Drive Time: 95 seconds for smooth transitions
✅ Manual Override: Disengage button for easy adjustments
✅ Quiet Operation: <40 dB at 3' (1m) for minimal noise disruption
✅ Long-Lasting Durability: Rated for 60,000 cycles and 1 million repositions
✅ Operating Conditions:

• Temperature: -5° to 140°F (-20° to 60°C)
• Humidity: 5% to 95% RH

Advanced Functionality:

• Adjustable mechanical range stops for customized control
• Auto-adapt feature on modulating models for enhanced accuracy
• Internal or field-installable auxiliary switches for added flexibility
• Adjustable zero and span for precise calibration
• Detachable wiring cover for easy installation and maintenance

Certifications & Warranty:

• UL Listed (File #E4996), CE, C-Tick, and Plenum Rated
• Backed by a 5-year warranty for reliability and peace of mind

The Honeywell MN7220A2007 is the perfect choice for HVAC professionals seeking a high-performance, durable, and precise actuator for their systems.

MN7220A2007 is identical to MN7220A2007/U
