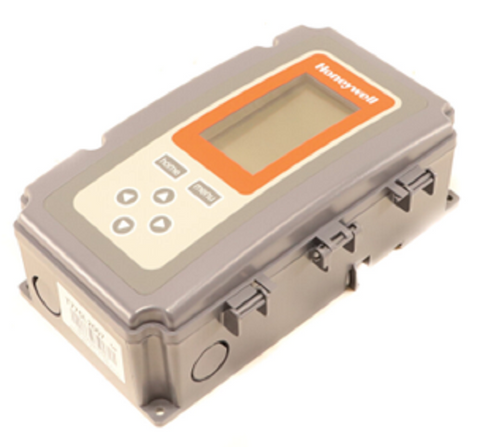

Honeywell T775L2007 Temperature Controller

Special Stand Alone Remote Temperature Controller, 24Vac or 120/240Vac, 4 SPDT Relay Outputs, 2 Sensor Inputs, Stage Sequencer with Reset Option, Expandable ( Add 1 or 2 T775S's, 4 Relays Each ), Output Reset, Includes 1 Sensor, Stages Loop Control, Sensor Element: 1097 Ohms PTC @ 77 Degrees, ±1 Degree @ 77 Degrees Accuracy, 1000' Maximum Distance to Sensor, -40-248 Setpoint Temperature Range, 1-150 Degree Throttling Range, 1-150 Degree Differential Temperature, 10 Amp Resistive Contact Rating @ 24Vac, 9.8 Amp Full Load Contact Rating @ 120Vac, 58.8 Amp Locked Rotor Contact Rating @ 120Vac, 125 VA Pilot Duty @ 120Vac, 4.9 Amp Full Load Contact Rating @ 240Vac, 29.4 Amp Locked Rotor Contact Rating @ 240Vac, 125 VA Pilot Duty @ 240Vac, Analog Output Type: 2-10Vdc, 0-10Vdc,4-20mA, Electronic Series 90

Honeywell T775L2007 Temperature Controller – Advanced Standalone Remote Control with LCD Display and Versatile I/O Options

The Honeywell T775L2007 Temperature Controller is a powerful, reliable, and easy-to-program standalone remote temperature control solution designed for HVAC, refrigeration, and other industrial applications. Ideal for precision climate control, this model supports multiple input/output configurations and delivers exceptional performance with a built-in display and advanced scheduling features.

Key Features:

• Flexible Power Options: Operates on 24VAC, 120VAC, or 240VAC (50/60 Hz)

• Control Versatility: Features 4 SPDT relay outputs and 2 sensor inputs

• Stage Sequencing: Built-in stage sequencer with reset options for optimized control

• Expandable Design: Supports expansion with up to two T775S modules (adds 4 relays each)

• Sensor Included: High-accuracy temperature sensor (±1°F @ 77°F), 1000' max distance

• Advanced Modulating Outputs: 0–10VDC, 2–10VDC, and 4–20mA output options

• Wide Temperature Range: Setpoint range from -40°F to 248°F; throttling and differential from 1°F to 150°F

• User-Friendly Interface: Backlit LCD display (2.5" x 1.5"), menu-driven programming with 6-key operation

• Programmable Scheduling: Integrated 7-day time clock with two events per day, daylight savings mode

• Memory Retention: Non-volatile memory retains program; 24-hour time backup

• Remote Control Capability: Digital input for remote system shutdown or night setback

• Built for Durability: Plenum-rated plastic enclosure, NEMA 1, NEMA 4X versions available

• Approvals: UL Listed, CE, C-Tick, FCC compliant

Technical Specifications:

• Contact Ratings:

  • 10A resistive @ 24VAC

  • 9.8A full load / 58.8A locked rotor @ 120VAC

  • 4.9A full load / 29.4A locked rotor @ 240VAC

• Display Options: °F or °C temperature display, supports RH, PSI, and In W.C. on W models

• Analog Input Types: RTD, 4-20mA, 0-10VDC

• Mounting Options: Surface or DIN rail mounting

• Operating Conditions: -40°F to 140°F; 5%–95% RH (non-condensing)

• Dimensions: 8.2"H x 4.9"W x 3"D; Weight: 2.2 lbs

Applications:

• Commercial HVAC Systems

• Refrigeration Units

• Greenhouses & Environmental Chambers

• Boilers, Chillers, and Industrial Process Equipment

Why Choose the T775L2007?

The Honeywell T775L2007 offers unparalleled flexibility, expandability, and performance for professionals who require reliable, precision temperature control with convenient programming and robust safety features.
