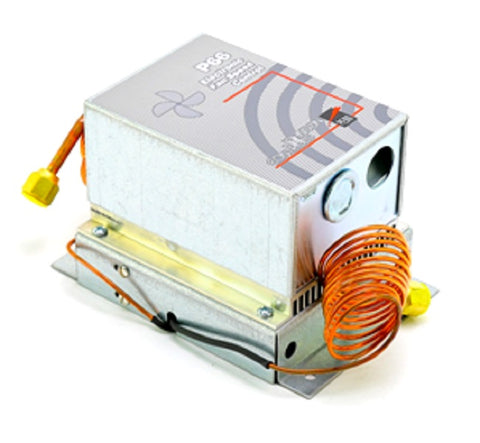

Johnson Controls P66BAB-1 Control

The Johnson Controls P66BAB-1 is a robust electronic fan speed control designed specifically for condenser fan motor regulation in air conditioning and refrigeration systems. This dual input sensor model operates within a pressure range of 190-250 psig, providing precise head pressure control by modulating fan motor speed in response to refrigerant pressure changes. Engineered for performance, the P66BAB-1 features a 60-inch capillary for flexible installation and a start voltage set at 10% of the supply voltage to ensure reliable motor startup even at lower speeds. This unit is electronically identical to the P66BAB-1C, making it a versatile drop-in replacement for maintenance and repair applications. It effectively prevents low head pressure issues during low ambient conditions, maintaining optimal system efficiency and preventing evaporator freeze-ups. For contractors, the solid-state design offers a reliable alternative to cycling fans, reducing mechanical wear and optimizing refrigerant flow through the expansion valve.

Key Benefits for HVACR Applications:

• Precise Head Pressure Regulation: Maintains consistent refrigerant head pressure during low ambient operation to ensure proper oil return and cooling capacity.
• Dual Sensor Input: Specialized dual input sensor configuration allows for more accurate sampling across high-side lines.
• Direct Replacement Compatibility: Verified as identical to the P66BAB-1C model, simplifying inventory and field replacement.
• Extended Motor Life: Uses fan speed modulation rather than harsh on/off cycling, reducing electrical stress on the condenser motor.
• Versatile Installation: The integrated 60-inch capillary tubes provide the reach necessary for complex cabinet layouts and manifold connections.

Common Technical Questions:

Is the P66BAB-1 compatible with all motor types?
This control is designed for permanent split capacitor (PSC) motors that are rated for use with solid-state speed controls. Always verify the motor manufacturer’s documentation for compatibility with phase-cut voltage modulation.

How does the 10% start voltage function?
The start voltage ensures that when the controller first calls for fan operation, it provides enough initial torque (10% of supply) to overcome the motor's static friction, preventing stalling.

Can this replace a mechanical pressure switch?
Yes, upgrading to a Johnson Controls P66 series electronic control provides much smoother pressure regulation compared to standard mechanical pressure cycling switches, leading to more stable superheat and subcooling values.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
