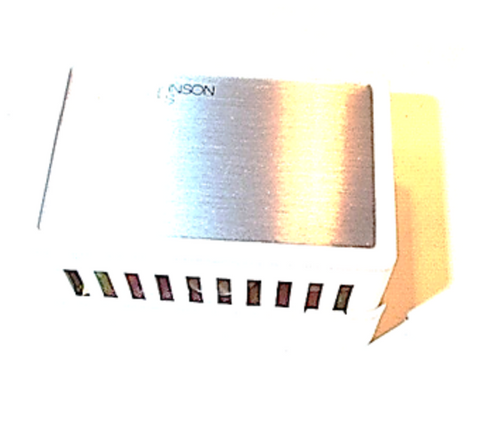

Johnson Controls TE-6344P-1 Temperature Sensor

The Johnson Controls TE-6344P-1 Temperature Sensor is a professional-grade 2.2k ohm NTC thermistor designed for high-accuracy space sensing in commercial HVAC systems. This wall mounting unit features a negative temperature coefficient (NTC) element, providing a reference resistance of 2,252 ohms at 77?F (25?C). Engineered for seamless integration with Metasys and other building automation systems, the TE-6344P-1 utilizes a thermistor element that allows for extended wiring runs?up to 150 feet with 18 AWG wire?without significant signal degradation, making it a reliable choice for large-scale HVAC temperature monitoring. The sensor is housed in a durable plastic enclosure with a clean white finish, designed to minimize the impact of radiant heat and ensure precise ambient data. For contractors, the unit-mount sensor simplifies commissioning by including a universal mounting plate, compatible with surface installs or standard electrical boxes when used with the TE-1800-9600 hardware kit.

Key Benefits

• System Compatibility: Designed specifically for Johnson Controls controllers and building management systems requiring a 2.2k ohm input.
• Reduced Signal Error: The high-resistance 2.2k ohm thermistor element minimizes the impact of field wiring resistance over long distances.
• Simple Installation: Includes a versatile mounting base and a discrete white cover that blends into most commercial interiors.
• Wide Operating Range: Accurately monitors temperatures from -50?F to 122?F (-46?C to 50?C) for diverse environmental applications.
• Contractor Friendly: Packaged with all necessary mounting accessories to reduce on-site commissioning time and labor costs.

Common Questions

Can this sensor be mounted directly to an electrical box?
Standard installation handles surface mounting to drywall. For mounting to a 2x4 inch handy box, you must utilize the TE-1800-9600 mounting hardware kit.

What is the wiring color code for this thermistor?
The TE-6344P-1 features 22 AWG lead wires color-coded red for easy identification during field termination.

Is this sensor suitable for high-vibration areas?
For optimal performance and longevity, avoid locations subject to excessive vibration or direct sunlight, which can cause erratic readings and premature element wear.
