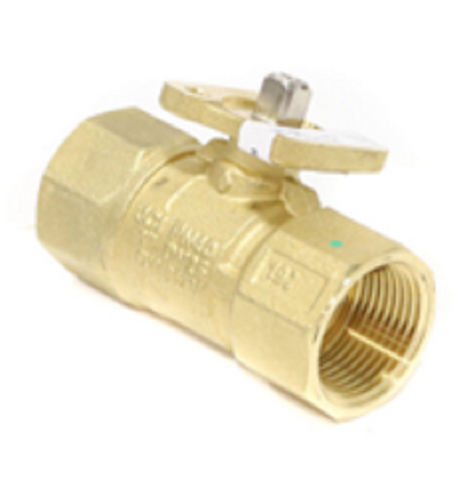

Johnson Controls VG1241CL Valve

The Johnson Controls VG1241CL is a heavy-duty 1" NPT two-way ball valve engineered for precision flow control in commercial HVAC chilled water and hot water systems. This valve features a resilient forged brass body and a 7.4 Cv rating, utilizing a characterized insert to deliver an equal percentage flow for stable thermal response. Designed for demanding contractor environments, the VG1241CL valve handles a wide fluid temperature range of 23?F to 203?F and supports a static pressure rating of 580 psig. The plated brass trim and chrome-plated brass ball are paired with graphite-reinforced PTFE seats, ensuring a leakage rating that meets ANSI Class IV standards. This VG1000 Series ball valve is highly compatible with VA9104 non-spring return and VA9203 spring return actuators, providing a 500:1 rangeability for superior modulating control in high-performance mechanical systems. For veteran technicians, this industrial ball valve offers a blowout-proof stem and 200 psi close-off pressure for reliable HVAC hydronic control.

• Precise Flow Regulation: Characterized insert ensures accurate equal percentage flow for optimal temperature control.
• Robust Build Quality: Forged brass body with plated brass trim provides long-term durability in high-static pressure systems.
• Tight Shutoff Performance: Achievement of ANSI Class IV leakage standards with a 200 psi close-off rating for superior isolation.
• Component Compatibility: Seamlessly integrates with Johnson Controls actuators (VA9104, VA9203, VA9208) for field or factory mounting.

What media is the Johnson Controls VG1241CL compatible with?
This valve is rated for hot water, chilled water, and glycol solutions up to 50% concentration. Note that brass trim models like the VG1241CL are not rated for steam service.

Does this valve include the actuator?
The VG1241CL is typically sold as the valve body only. It is designed to be paired with specific VA and M9000 series actuators depending on your on-off, floating, or proportional control requirements.

Can these valves be used in high-pressure applications?
Yes, the forged brass construction supports a maximum static pressure of 580 psig (PN40) and is designed to handle a maximum differential pressure of 50 psid for standard operation.
