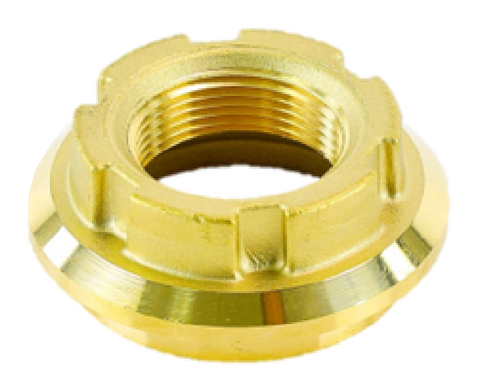

Johnson Controls VG7000-1016 Adapter Kit

The Johnson Controls VG7000-1016 is a heavy-duty cast bronze bonnet adapter kit engineered for field-retrofitting and hardware conversion on 1" to 2" VG7000 Series bronze globe valves. As a veteran-grade HVAC valve accessory, this kit is the industry standard when replacing legacy Johnson Controls M100, V-400, V-500, and MP8000 series valve actuators. By providing a rugged interface for V-3000 style linkage, the VG7000-1016 ensures precise stem alignment and consistent seating force, which is critical for maintaining the control valve assembly performance in high-demand steam and hydronic systems. This bonnet adapter kit allows contractors to modernize older pneumatic or electric setups with current-generation actuators, extending the service life of existing valve bodies without requiring full piping teardowns. Its robust construction resists the mechanical stresses of high-duty cycle applications, ensuring that your HVAC actuator mounting remains stable under constant modulation.

• Legacy Compatibility: Designed specifically for replacing M100, V-400, V-500, and MP8000 series actuators on existing VG7000 bronze bodies.
• Precision Alignment: Provides a secure mounting point for V-3000 style linkages, preventing stem binding and premature packing wear.
• Durable Construction: The cast bronze material provides superior corrosion resistance and thermal stability in steam and hot water applications.
• Field Efficient: Simplifies the upgrade process on 1-inch to 2-inch valve sizes, reducing labor time during actuator retrofits.

Which valve sizes are compatible with the VG7000-1016?
This adapter kit is specifically sized for Johnson Controls VG7000 Series bronze valves with port sizes ranging from 1 inch to 2 inches.

Can I use this kit to mount a VA7200 series actuator?
Yes, this bonnet adapter is frequently utilized to facilitate the mounting of VA7200 series electric actuators when retrofitting older valve configurations.

What linkage style does this adapter support?
The VG7000-1016 is designed to accommodate V-3000 style linkage, ensuring a standard interface for common pneumatic and electric actuator replacements.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
