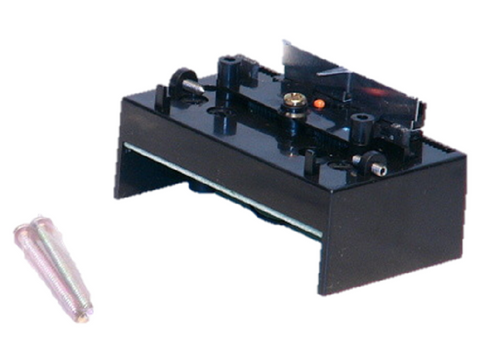

KMC Controls CTE-5104 Room Stat

The KMC Controls CTE-5104 Room Stat is a specialized dual setpoint DA/RA thermostat engineered for high-precision temperature regulation in commercial HVAC systems. This proportional electronic controller is specifically designed to interface seamlessly with CSP-5001/5002 flow controllers and REE-1000/4000 series auxiliary relays. With a versatile operating range of 55?? to 85??F, the CTE-5104 provides independent heating and cooling adjustments to maintain tight environmental tolerances while optimizing energy efficiency. The unit supports both direct-acting (DA) for cooling with reheat and reverse-acting (RA) configurations, making it a critical component for complex VAV terminal unit control. For contractors and building engineers, this proportional room thermostat offers reliable 0 to 10 VDC output capability to drive high-impedance (10K ohms or higher) MEP series actuators or VEB series valves. Whether you are performing a field replacement or a new system integration, the CTE-5104 ensures stable, drift-free setpoint management in multi-stage sequences.

• Dual Setpoint Flexibility: Features independent controls for heating and cooling to prevent simultaneous operation and energy waste.
• Advanced Logic Compatibility: Optimized for direct integration with KMC Controls CSP-5001 and CSP-5002 air flow controllers.
• Wide Application Range: Ideal for DA cooling with reheat, night/day changeover, and temperature averaging requirements.
• Technical Output Control: Delivers a consistent 0-10 VDC control signal suitable for proportional electronic actuators and valves.
• Industry Standard Form Factor: Supports horizontal mounting with visible or concealed setpoint adjustment options for secure installations.

Is the KMC CTE-5104 compatible with non-KMC actuators?
Yes, it can control other high-impedance (10K ohms or higher) devices, including MEP series actuators and VEB series valves that operate on a 0 to 10 VDC circuit.

Does this unit come with the scale plate and cover?
Typically, the scale plate assembly and cover are specific to the installation style (horizontal/vertical, visible/hidden) and may need to be ordered separately to match your site requirements.

What is the primary function of the limited output?
The limited output on the CTE-5104 is used to set adjustable minimum and maximum flow limits for a CSP-5001/5002 controller, preventing the system from operating outside of design parameters.
