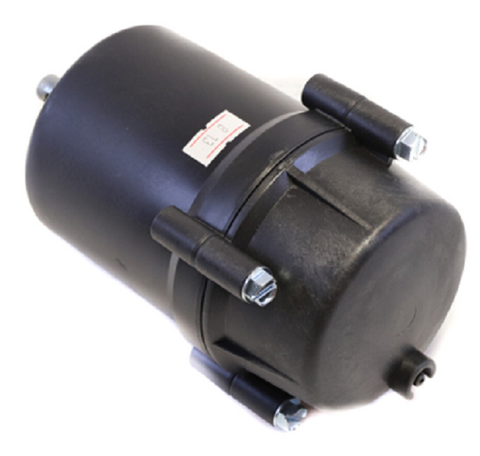

KMC Controls MCP-0305 Actuator

The KMC Controls MCP-0305 Actuator is a professional-grade pneumatic solution engineered for precise damper and valve control in commercial HVACR systems. This standard body pneumatic actuator features a robust 3-inch stroke and is calibrated for an 8-13 PSI spring range, ensuring reliable modulation in air handling units and VAV terminals. Built with a hard-anodized aluminum body and a stainless steel piston rod, the MCP-0305 pneumatic cylinder is designed for high-cycle durability in demanding environments. As a "bare" model, it allows for flexible mounting configurations, making it a versatile replacement damper actuator for legacy systems or new installations requiring linear pneumatic control. Its double-acting capability and 150 PSI maximum operating pressure provide the force and accuracy necessary for maintainance professionals to optimize airflow and pressure regulation.

Key Benefits

• Precise Airflow Control: The 3-inch stroke length combined with the 8-13# spring range allows for accurate positioning and smooth modulation of dampers.
• Industrial-Grade Build: Features a corrosion-resistant aluminum body and stainless steel rod to withstand the rigors of mechanical rooms.
• Versatile Compatibility: The "bare" configuration is ideal for technicians needing a KMC pneumatic actuator that can be adapted to various linkage kits and mounting hardware.
• High Pressure Capacity: Rated for air pressures up to 150 PSI, providing significant force output for heavy-duty HVAC applications.

Common Questions

What is the typical application for the MCP-0305?
This actuator is primarily used for regulating damper blades in large air handlers, bypass systems, and industrial ventilation units where pneumatic signals provide the control logic.

Does this unit include the mounting bracket or linkage?
No, the MCP-0305 is a "bare" actuator. It is intended for field replacement on existing brackets or for use with specific KMC linkage kits tailored to your damper?ÇÖs requirements.

What are the bore and rod dimensions?
The unit features a 13mm bore and an 8mm rod diameter, maintaining a compact footprint without sacrificing the mechanical advantage needed for 3-inch travel.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
