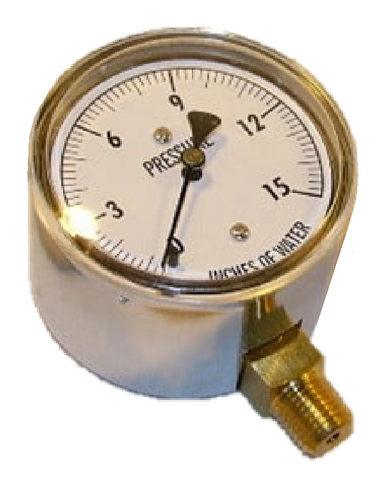

Kodiak Controls 25-15WC Pressure Gauge

The Kodiak Controls 25-15WC is a professional-grade low pressure gauge engineered for high-accuracy sensing in HVAC, gas distribution, and pneumatic systems. This 0-15" WC pressure gauge features a 2.5-inch dial face, providing clear resolution for monitoring trace amounts of pressure in sensitive applications where precise water column readings are critical. Built with a dry case design and a black painted steel housing, this unit is designed for standard indoor environments and dry air or non-corrosive gas media. The 1/4" NPT lower mount connection ensures a secure, leak-free fit for manifold blocks or piping drops. Utilizing a sensitive diaphragm element, the 25-15WC delivers more reliable performance than standard bourdon tube gauges at these extremely low ranges. As a genuine Kodiak Controls pressure gauge, it meets the rigorous standards required for field service and industrial installations where OEM consistency is necessary for system calibration.

Technical Benefits:

• High-Resolution Measurement: Optimized for limited ranges of 0 to 15 inches of water column, essential for gas valves and draft pressure checks.
• Industrial Build Quality: Features a robust steel case and copper alloy internals for consistent cycling without calibration drift.
• Standardized Threading: The 1/4 inch NPT brass connection integrates into most commercial gas trains and HVAC test ports.
• Enhanced Visibility: The 2.5-inch dial provides better legibility than smaller 1.5 or 2-inch alternatives during field inspections.

Common Questions & Answers:

What is the accuracy rating for this low pressure gauge?
The Kodiak 25-15WC typically follows the ASME B40.100 Grade B standard, providing a 3-2-3% accuracy across the span of the dial.

Can this gauge be used for liquid applications?
No, this is a dry case gauge with a diaphragm capsule specifically designed for air and compatible dry gases; liquids will damage the internal mechanism.

How do I ensure the 1/4" NPT connection is airtight?
For gas applications, we recommend using a gas-rated PTFE thread sealant or a high-quality pipe dope on the lower mount threads during installation.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
