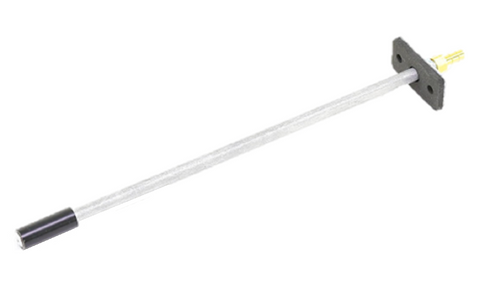

MAMAC Systems A-520-2-A-1 Pressure Probe

For veteran technicians and contractors requiring clinical accuracy in air handling systems, the MAMAC Systems A-520-2-A-1 Static Pressure Probe is a field-proven 8-inch pick-up engineered for long-term reliability. Precision-machined from 6061T-6 aluminum alloy, this probe is built to monitor static pressure in demanding duct, plenum, and air handler environments without the drift common in plastic alternatives. It features a technical dual-orifice design where sensing ports are positioned diametrically opposite in a vertical plane; this specific geometry cancels out airflow-induced velocity errors, ensuring stable and repeatable pressure readings even in high-velocity airstreams. The integrated neoprene gasket and 1.5-inch mounting flange create an airtight seal against sheet metal, while the 1/4-inch brass hose barb connection provides a secure, leak-free transition to PVC or copper tubing. With a temperature rating up to 482°F (250°C), this A-520 series probe is a resilient solution for commercial balancing and VAV system optimization.

Key Benefits for the Field:

• Velocity Error Cancellation: The dual orifice static sensor design utilizes the Fechheimer derivative to negate suction effects, providing a pure static pressure value regardless of duct velocity.
• Industrial Build Quality: Constructed from high-grade 6061T-6 aluminum to resist corrosion and structural fatigue in commercial HVAC environments.
• High-Heat Resilience: Rated for operating temperatures up to 482°F (250°C), suitable for extreme air handling applications.
• Streamlined Installation: Features a gasketed mounting flange with pre-drilled holes, designed to significantly reduce labor time during duct deployment.
• Integrity-First Design: The tamper-proof sensing cavity is engineered so it cannot be obstructed or taped over, ensuring data reliability for critical building automation systems.

Common Contractor Questions:

How does the dual-orifice design improve accuracy over single-port probes?
Standard single-orifice probes often experience a low-pressure suction effect as air flows across the opening, creating an error that increases exponentially with air velocity. The MAMAC A-520 uses two opposing orifices; the suction on one is cancelled by the equal and opposite pressure drop on the other, delivering a stable reading across different CFM ranges.

What size hole is required for duct installation?
For the most efficient installation, a 3/8-inch hole should be drilled in the sheet metal to accommodate the 8-inch aluminum probe. Use the flange as a template to secure the assembly with self-tapping screws.

Can this probe be used in corrosive exhaust environments?
While the 6061T-6 aluminum alloy offers excellent resistance for standard HVAC and air handling applications, 304 stainless steel variants are typically recommended for specific industrial exhaust streams where highly corrosive gases are present.
