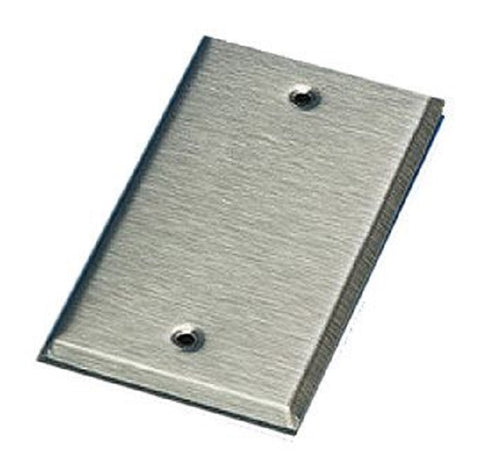

MAMAC Systems TE-205-P-7 Temperature Sensor

Install the MAMAC Systems TE-205-P-7 for reliable space temperature sensing in high-traffic or accident-prone environments. This 10,000 Ohm NTC Thermistor (Type III) sensor is built with a rugged, tamper-proof stainless steel plate that mounts directly to a standard 2" x 4" handy box. As a veteran-preferred HVAC temperature sensor, this unit offers high stability and a fast response time, making it ideal for schools, hospitals, and gymnasiums. The TE-205-P-7 features a wide operating range of -40° to 210°F, ensuring compatibility with diverse building automation systems (BAS). With its Type III thermistor curve, this vandal-proof sensor provides a precise resistance output without the need for periodic calibration. This wall-mount temperature sensor is engineered for contractors requiring a durable, low-profile solution that integrates seamlessly into existing low-voltage HVAC control loops while maintaining an unobtrusive, professional aesthetic.

• Vandal-Resistant Design: The brushed 304 stainless steel plate protects the NTC thermistor from physical impact and tampering.
• Universal Compatibility: Features a standard 10k Type 3 resistance curve compatible with most major BAS and DDC controllers.
• Precision Accuracy: Delivers high-interchangeability accuracy of +/- 0.36°F (+/- 0.2°C) for tight climate control.
• Simplified Installation: Standard 2-wire pigtail lead connection facilitates rapid field wiring to a junction box.
• Industrial Durability: Rated for a wide temperature swing, making it suitable for both conditioned spaces and mechanical rooms.

What controller brands are compatible with the 10K Type III thermistor?
The 10,000 Ohm Type III curve is a standard in the industry, widely supported by manufacturers like Delta Controls, Automated Logic, and Schneider Electric.

Does this sensor require a specific orientation when mounting?
No, the TE-205-P-7 can be mounted vertically or horizontally on a standard utility box; however, vertical orientation is standard for matching typical electrical switch plate alignment.

Is the plate material suitable for washdown environments?
Yes, the stainless steel construction and encapsulated sensor design allow for use in areas requiring frequent cleaning or high-moisture exposure, though it is not rated for full submersion.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
