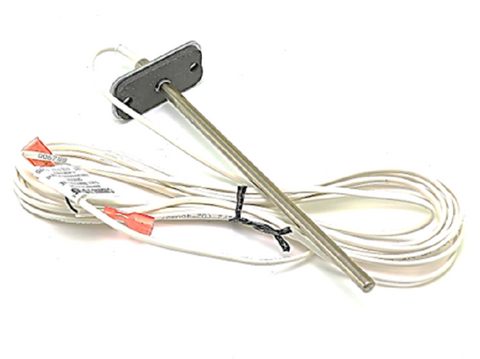

MAMAC Systems TE-701-BX-12-B Temperature Sensor

The MAMAC Systems TE-701-BX-12-B is a professional-grade VAV discharge air temperature sensor engineered for precise thermal monitoring within high-velocity ductwork. This unit features a 10,000 Ohm NTC thermistor (Type II), ensuring high-accuracy resistance output compatible with the majority of industry-standard building automation systems (BAS) and VAV controllers. The 6-inch 304 stainless steel probe utilizes a thin-wall design with a cold-rolled, hermetically sealed tip, creating a monolithic encapsulation that protects the internal sensing element from moisture migration, thermal shock, and mechanical vibration. Designed for rapid response, the flat-end probe allows for direct thermal contact, providing nearly instantaneous data for discharge air temperature control loops. Installation in HVAC duct mounting applications is streamlined by a galvanized steel flange and a low-profile crimped attachment. For maximum field flexibility, it includes 12 feet of plenum-rated cable and 1/4-inch quick-disconnect terminals, meeting rigorous safety standards for air-handling spaces.

• Universal Compatibility: The 10K Type II NTC thermistor curve is the standard for most commercial HVAC controllers, ensuring seamless integration.
• Enhanced Durability: The 304 SS probe and hermetic seal prevent sensor drift or failure in high-humidity or contaminated air streams.
• Fast Thermal Response: Advanced tip-sensitive technology provides the rapid temperature feedback necessary for tight VAV box regulation.
• Plenum Rated: The pre-installed 12-foot cable meets building codes for installation within ceiling voids and air plenums.

What is the sensor accuracy for this NTC thermistor?
This sensor provides a standard interchangeability of +/- 0.36°F (0.2°C) at 77°F, ensuring high-precision data for critical airflow control.

Can this sensor be used in high-moisture environments?
Yes, the TE-701-BX-12-B features a hermetically sealed monolithic encapsulation specifically designed to eliminate failures caused by moisture and condensation.

How do I wire this to my VAV controller?
The unit comes with 12 feet of plenum-rated cable and 1/4" quick-disconnects, allowing for direct attachment to controller inputs or standard terminal blocks.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
