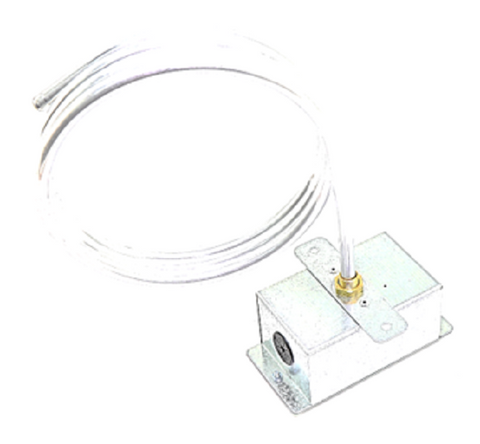

MAMAC Systems TE-705-B-4-A-1 Temperature Sensor

The MAMAC Systems TE-705-B-4-A-1 is a commercial-grade duct averaging temperature sensor designed for precise climate control in large air handling units and plenums. Featuring a 1,000 Ohm Nickel RTD (6000 PPM) sensing element, this unit delivers high-accuracy resistance output to your building automation system (BAS) or DDC controller. The 6-foot bendable 3/8-inch aluminum probe is engineered to withstand high-velocity airflow while allowing for custom serpentine installation to eliminate the risks of temperature stratification. Encased in a rugged NEMA 1 galvanized steel enclosure, this sensor is built for the demanding environments of mechanical rooms. The continuous averaging technology ensures that the controller receives a representative data point of the entire duct cross-section rather than a single-point reading, which is critical for preventing coil freeze-up and optimizing economizer cycles. This HVAC temperature sensor provides reliable BAS integration and long-term stability for professional contractors managing sophisticated air distribution systems.

• Enhanced Accuracy: The 1,000 Ohm Nickel RTD element provides a 6000 PPM coefficient for precise averaging temperature sensing.
• Durable Construction: 18-gauge galvanized steel NEMA 1 enclosure protects internal connections from dust and physical impact.
• Flexible Installation: The 6-foot aluminum probe is easily shaped to maximize duct coverage and accurately capture stratified air layers.
• System Compatibility: Standard resistance output integrates seamlessly with most major building automation systems.
• Reliable Performance: Environmentally sealed sensor modules prevent moisture migration and ensure consistent readings in high-humidity return or supply air.

How does this sensor handle air stratification?
Unlike single-point sensors, the TE-705-B-4-A-1 averages the temperature across the entire 6-foot probe length, providing a mean value that compensates for uneven air mixing in large ducts.

What is the proper mounting procedure for the probe?
Technicians should drill a 7/16-inch hole and serpentine the bendable probe across the duct width, securing it with mounting clips to ensure the entire air stream is sampled.

Can the probe be trimmed if 6 feet is too long?
No, the aluminum probe contains precisely spaced sensing modules. Trimming the probe will damage the internal circuitry and cause the sensor to fail.
