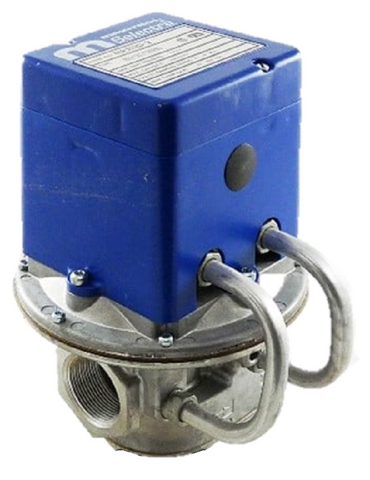

Maxitrol MR212D-2-1212 Valve

1 1/2" NPT Modulating Gas Valve and Regulator for Direct Fired (Negative Pressure) Burners with 5 PSI Inlet Pressure Max and Dual Pressure Setting

Maxitrol MR212D-2-1212 1-1/2" NPT Modulating Gas Valve and Regulator – Selectra® Series for Negative Pressure Burners

The Maxitrol MR212D-2-1212 Valve is a premium 1-1/2" NPT modulating gas valve and regulator engineered for direct-fired (negative pressure) burners. With a maximum 5 PSI inlet pressure and dual pressure settings, this valve delivers precise, stable, and instantaneous temperature control for a wide range of industrial and commercial heating applications.

Part of the renowned Selectra® Electronic Gas Flame Modulating System, the MR212D-2-1212 features a unique modulator/regulator design that eliminates the need for motors or mechanically driven butterfly valves. It ensures non-fluctuating temperature regulation, ideal for area heating, drying, and process temperature control.

This valve is specifically designed for negative pressure (pull-through) systems and includes a counter spring mechanism to maintain closure against vacuum forces. Factory-set for applications up to -1.5” w.c., the MR212 can be field-adjusted up to -3.5” w.c., providing flexibility for various operating conditions.

Key Features:

• Model: MR212D-2-1212

• Manufacturer: Maxitrol

• Size: 1-1/2" NPT

• Type: Modulating Gas Valve and Regulator

• System Compatibility: Direct-fired negative pressure burners

• Maximum Inlet Pressure: 5 PSI

• Dual Pressure Settings: Factory and field adjustable

• Built-In Regulator: Maintains constant supply pressure for consistent firing rates

• Temperature Control: Provides stable, instantaneous modulation without mechanical components

• Design: Counter spring maintains valve closure under negative pressure

• Construction: Durable, industrial-grade components for long service life

Applications:

• Direct-fired air heaters

• Industrial ovens and dryers

• Baking and drying processes

• Process and area heating systems requiring stable temperature control

Why Choose Maxitrol?
Maxitrol’s Selectra® modulating valves are trusted worldwide for precision gas control, energy efficiency, and reliable performance in demanding environments.

Maxitrol MR212D-2-1212 – The Reliable Choice for Accurate, Stable Temperature Control in Negative Pressure Gas Systems.
