Daikin-McQuay 910191961 Sensor

DIGITAL ROOM SENSOR W/ HUMIDIT

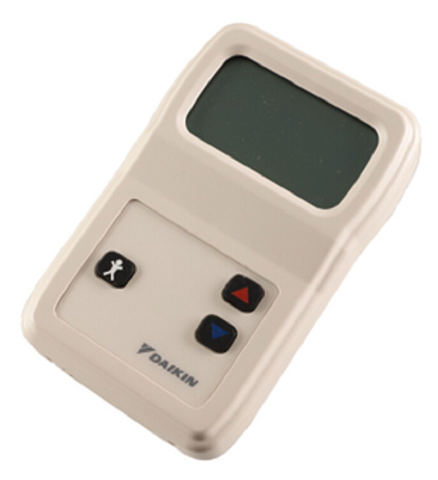

Daikin-McQuay 910191961 Digital Room Sensor with Humidity – Space Temperature & RH Sensor for MicroTech® Controllers

The Daikin-McQuay 910191961 Digital Room Sensor is a precision-engineered space temperature and relative humidity sensor designed to work seamlessly with Daikin MicroTech® unit controllers. Featuring a 10k thermistor and a large LCD display, this sensor provides real-time monitoring and control in both constant air volume (CAV) and variable air volume (VAV) applications.

Unlike traditional programmable thermostats, this non-programmable sensor is optimized for system integration, providing reliable readings and user interaction through dedicated setpoint adjustment buttons and a tenant override function. Its durable ABS plastic housing and wide temperature/humidity range make it ideal for commercial and industrial environments.

🔧 Key Features:

• Model: 910191961

• Type: Digital Room Sensor with Humidity

• Compatibility: For Daikin MicroTech® unit controllers

• Sensor Type: 10k Thermistor for temperature and RH monitoring

• Applications: Supports both CAV and VAV HVAC systems

  • CAV: Acts as a control device for heating and cooling during occupied/unoccupied periods

  • VAV: Functions as a temperature/humidity sensor for unoccupied mode

• Display: Large LCD (3.5 digits, 0.6" height)

• Setpoint Adjustment: Up/Down keys (in 0.5° increments)

• Tenant Override Button: Initiates override at controller

• Power Input: 15 to 28 VAC (24 VAC nominal)

• Power Consumption: 17 VA max

• Material: Flame-retardant ABS plastic (UL94V-0)

📦 Environmental Specifications:

• Temperature Range: 32°F to 122°F (0°C to 50°C)

• Humidity Range: 0–95% RH, non-condensing

• Mounting: Wall-mounted interface

• Unit of Measure: Each

Ensure accurate climate control and seamless integration with your HVAC system using the Daikin 910191961 Digital Room Sensor—the ideal solution for energy-efficient, user-responsive temperature and humidity monitoring.
