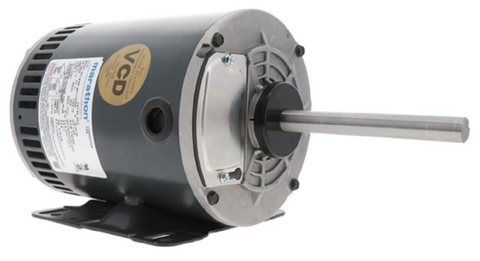

Marathon X513 Motor

208-230/460v3ph 1hp 1140rpm

X513 is the cross of 4ME20

Marathon X513 Motor – 1 HP 1140 RPM 208-230/460V 3-Phase OPAO Condenser Fan/Heat Pump Motor

The Regal Rexnord – Marathon X513 is a high-performance 1 HP, 1140 RPM, 3-phase commercial motor engineered for condenser duty applications. Designed for reliability and long-lasting operation, this OPAO-enclosed Marathon motor delivers consistent performance in demanding HVAC environments.

Ideal for commercial condenser fans and heat pump systems, the Marathon X513 can be installed outdoors and is suitable for shaft-up or horizontal mounting. For proper cooling, this motor must be mounted directly within the airflow of the fan system. Built with a durable rolled-steel body design, it ensures stability, efficiency, and dependable operation across a wide range of applications.

Key Features

• Brand: Marathon (Regal Rexnord Commercial)

• Part Number: X513

• Model/Spec Number: 056T11O5305

• Application: Commercial condenser duty

• Output Power: 1 HP / 0.75 kW

• Speed: 1140 RPM (60 Hz) / 950 RPM (50 Hz)

• Voltage: 208-230/460V (60 Hz) // 190/380V (50 Hz)

• Phase: 3-Phase

• Frame Size: 56HZ

• Mounting: F1 | With Base

• Enclosure: OPAO (Open Air Over)

• IEC Rating: IP10

• Frequency: 60/50 Hz dual-rated

• Efficiency: 75.5%

• Thermal Protection: Auto-Lock Rotor Only

• Body Design: Rolled Steel

• Inverter Rating: Non-compatible

Product Highlights

• Built for commercial HVAC applications, including condenser fan and heat pump systems.

• Outdoor-rated design for reliable long-term performance.

• Supports shaft-up or horizontal mounting for installation flexibility.

• Designed for efficient cooling when mounted in airflow.

• Durable rolled-steel construction ensures strength and stability.

Applications

• Commercial condenser units

• Heat pump systems

• Air handling and ventilation

• HVAC replacement and upgrade projects

This Marathon X513 commercial motor provides dependable 3-phase performance with rugged construction, making it a trusted replacement choice for OEM and aftermarket HVAC applications.
