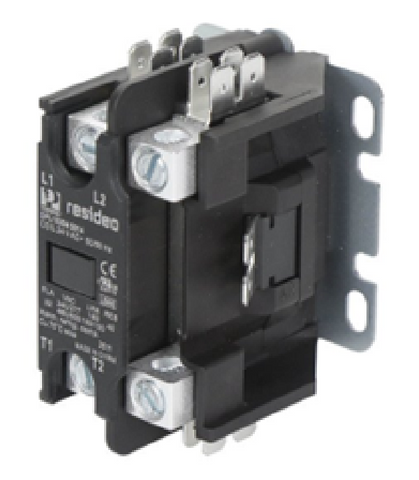

Resideo DPL1030A5014 Contactor

PowerPro Definite Purpose Contactor, 1 Pole, 24Vac, SPST, 1/4" Quick Connects, 30 Amp, Silver Cadmium Oxide Contacts, -4/149 Degree Temperature Range

DPL1030A5014 is the cross for C301NU10, DP1030A5014/U, MARS 61320, DP1030A5014

Resideo DPL1030A5014 Contactor – 1-Pole 30A/24V Definite Purpose Relay

The Resideo DPL1030A5014 Contactor is a premium OEM 1-pole, 30A relay designed for reliable switching in HVAC and refrigeration systems. Engineered to meet demanding ARI-780 standards, this definite purpose contactor is suitable for use with A2L refrigerants and offers long-lasting performance with silver cadmium oxide contacts. Its low-profile design provides additional wiring space, while multiple mounting options ensure easy installation and compatibility with most competitive devices.

Key Features:

• Genuine OEM Resideo DPL1030A5014 contactor

• 1-pole, 30A definite purpose relay

• Compatible with A2L refrigerants

• Meets ARI-780 standard for mechanical (500,000 cycles) and electrical (200,000 cycles) life, and 10,000-cycle recycle life

• Silver cadmium oxide contacts for long-lasting, reliable performance under demanding duty cycles

• Low-profile design for more wiring room

• Multiple mounting holes and slots for flexible installation

• Quick-connect 1/4" coil terminals and box lug electrical connections

Specifications:

• Manufacturer: Resideo

• Part Number: DPL1030A5014

• Coil Voltage: 24V AC

• Number of Poles: 1 Pole with shunt

• Switch Action: SPST

• Operating Frequency: 50/60 Hz

• Ambient Operating Temperature: -13°F to 158°F (-25°C to 70°C)

• Product Dimensions: 2.3" H x 3.2" W (58 mm x 81 mm)

• Approvals: UL Recognized Component (File No. E220475/E59779)

Safety Warning:
This product must be installed by a qualified/licensed contractor using properly calibrated test equipment. Improper installation can result in property damage, personal injury, or death. Resideo is not responsible for damages or injuries resulting from improper installation.

The Resideo DPL1030A5014 Contactor provides OEM-grade reliability, robust performance, and flexible installation options, making it an ideal choice for HVAC and refrigeration professionals across all selling platforms.
