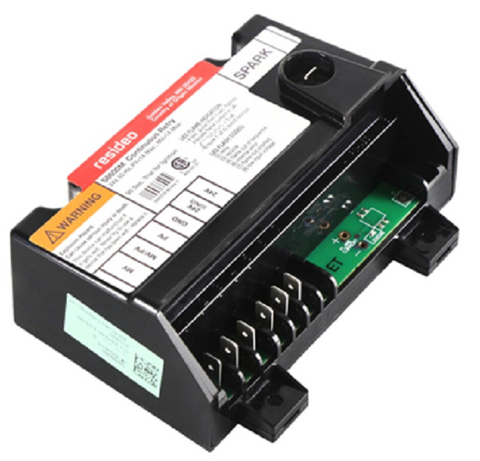

Resideo S8600M3001/B Ignition Module

The Resideo S8600M3001/B is a field-proven intermittent pilot ignition module designed for 24 VAC gas-fired atmospheric burners. This unit is the primary direct replacement for 412-101-000, delivering consistent continuous retry sequencing to ensure system uptime in residential and light commercial furnaces or boilers. Engineered for single-rod (local) flame sensing, this module integrates an internal high-voltage spark generator and flame rectification circuitry to manage intermittent pilot operations with a 90-second ignition trial time.

For technicians navigating troubleshooting or system upgrades, this control supports Natural Gas and LPG applications. If a flame is not sensed during the initial trial, the module initiates 100% shutoff followed by a 5-minute delay before auto-retrying. Its robust design is compatible with standard VR8204 and VR8304 gas valves, as well as Q345 and Q3451 ignition hardware. This module provides a maximum valve load of 1A for the pilot and 1A for the main valve at 24 VAC, 60 Hz, ensuring high-reliability flame monitoring and safety shutoff under demanding heating cycles.

Key Benefits for Contractors:

• Universal Compatibility: Serves as a drop-in replacement for Slant Fin 412-101-000 and aligns with various intermittent pilot gas ignition systems.
• Enhanced System Resilience: The continuous retry feature eliminates nuisance lockouts by repeating the ignition trial sequence until the pilot lights or the call for heat ends.
• Reliable Safety: Features 100% shutoff on ignition failure and a 2-second maximum flame failure response time for total peace of mind.
• Rugged Temperature Range: Certified for operation from -40°F to 175°F (-40°C to 79°C), suitable for unconditioned mechanical rooms.

Common Professional Questions:

Is the S8600M3001/B compatible with two-rod systems?
No, this specific module is designed for single-rod flame sensing (local sensing). If your application requires a separate igniter and sensor (two-rod), use a compatible "separate sensing" model like the S8610U3009/U universal control.

What are the wiring requirements for the burner ground?
A solid common ground is mandatory. You must connect the pilot burner mounting bracket to the GND (BURNER) terminal on the module to prevent intermittent spark loss or weak flame current readings.

Can I use this with a vent damper?
Yes, this module includes a standard D80D vent damper plug. Ensure the plug remains in place if no damper is present to maintain circuit continuity.

Important Installation Note: This product must be installed by a licensed HVAC technician using properly calibrated equipment. Improper installation can result in property damage, serious injury, or death. Resideo is not responsible for damages resulting from unqualified installation.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
