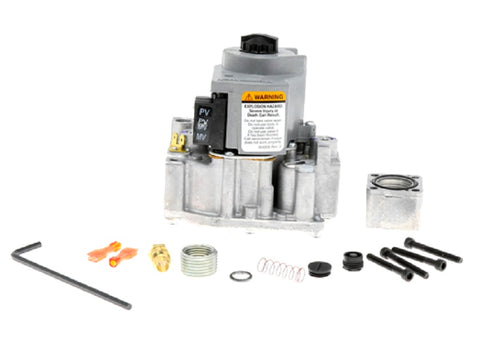

Resideo VR8204M1091 Valve

1/2" intermittent pilot dual automatic combination valve, 24vac, standard opening, 3.5"wc regulator setting, single stage, 20-200 cfh, 1/2# pressure setting, 1/8" pressure tapping with plug, for use in gas fired intermittent pilot appliance applications, includes one 3/4" straight flange, one 1/2"x3/8" reducer bushing, lp conversion kit

VR8204M1091 is the cross of R37933B002

Resideo VR8204M1091 Gas Valve – 1/2" Intermittent Pilot Dual Automatic Combination Valve, 24V

The Resideo VR8204M1091 is a reliable 24V intermittent pilot combination gas valve designed for safe and efficient control of gas flow in residential and light commercial gas-fired appliances. Built with dual automatic safety shutoff and a servo pressure regulator, this valve delivers dependable performance while meeting strict safety code requirements.

Ideal for furnaces, boilers, unit heaters, and other intermittent pilot applications, the VR8204M1091 supports systems ranging from 20 to 200 CFH with a maximum capacity of 150,000 BTU/hr. Its compact design, accessible top-side adjustments, and included installation accessories make it a convenient and versatile replacement or upgrade.

🔧 Key Features

• Genuine Resideo (Honeywell Home) OEM gas control valve

• Designed for 24 Vac intermittent pilot gas-fired appliances

• Dual automatic valves for enhanced safety shutoff

• Standard opening with 3.5" WC regulator setting

• Built-in servo pressure regulator and pilot adjustment

• Compact size with easy top-access wiring and adjustments

• Meets codes requiring dual safety shutoff

• ON-OFF lighting sequence

📦 Included Accessories

• Natural Gas to LP conversion kit

• One 3/4" straight flange

• One 1/2" x 3/8" reducer bushing

📐 Technical Specifications

• Model: VR8204M1091

• Fuel Type: Natural Gas (LP convertible)

• Ignition Type: Intermittent Pilot

• Valve Type: Single Stage, Dual Automatic Combination Valve

• Voltage: 24 Vac, 60 Hz

• Capacity: 150,000 BTU/hr (20,000 BTU/hr minimum)

• Flow Rate: 20–200 CFH

• Inlet/Outlet Size: 1/2" x 1/2"

• Body Pattern: Straight-through

• Pressure Rating: 1/2 psi

• Regulator Setting: 3.5" WC (0.87 kPa)

• Pressure Tapping: 1/8" NPT with plug

• Pilot Outlet: Compression fitting for 1/4" OD tubing

• Electrical Connections: 1/4" quick-connect terminals

• Temperature Range: -40°F to 175°F

• Mounting: 0° to 90° from upright position

🏭 Compatible Applications

• Gas furnaces

• Boilers

• Unit heaters

• Rooftop heating units

• Other 24V intermittent pilot gas-fired appliances

Compatible with control modules such as S86F/H, S8600F/H, and S8610.

The Resideo VR8204M1091 gas valve provides dependable ignition control, safe dual shutoff protection, and consistent pressure regulation — making it a trusted solution for HVAC professionals and service technicians.

Factory New | Genuine OEM Resideo Gas Control Valve
