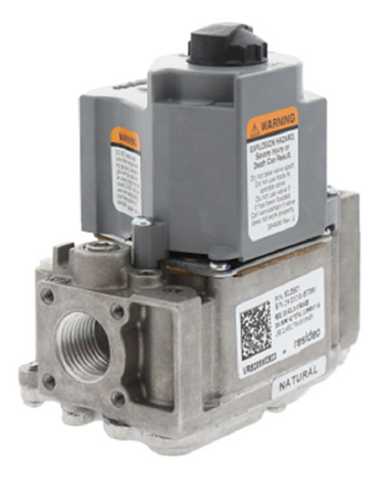

Resideo VR8205M2823T Gas Valve

1/2" 24V DualDirectIgn GasVlv

VR8205M2823T is the updated version for VR8205M2823

Resideo VR8205M2823T Gas Valve – 1/2" 24V Dual Direct Ignition Control Valve

The Resideo VR8205M2823T is a high-performance 1/2" 24V dual direct ignition gas valve designed for single-stage gas-fired appliances. Engineered for compatibility with hot surface ignition and direct spark ignition systems, this OEM-quality control is ideal for use in a wide range of residential and light commercial heating applications with capacities from 30 to 415 cubic feet per hour (cfh).

Key Features:

• Application: Single-stage gas control for hot surface or direct spark ignition systems

• Dual Valve Design: Manual valve + two automatic safety valves

• Safety Compliance: Meets dual safety shutoff codes with reliable solenoid and diaphragm control

• Ignition Type: Direct Ignition (DSI)

• Voltage: 24 Vac operation

• Capacity: Up to 150,000 BTUh (minimum 20,000 BTUh at 1" wc pressure drop)

• Inlet/Outlet Size: 1/2" x 1/2" NPT

• Pressure Regulator Setpoint: 3.5" wc (0.87 kPa)

• Mounting Orientation: 0 to 90° from upright, including vertical installations

• Opening Characteristic: Standard opening

• Approvals: UL Recognized (MH5323), CSA Certified (112395), AGA Certified for Delta C Applications

• Operating Temperature: -40°F to +175°F (-40°C to +79°C)

• Electrical Connection: 1/4" male quick-connect terminals

• Fuel Type: Natural Gas (conversion kits available for LP)

Dimensions:

• Height: 4-5/8 in. (117 mm)

• Width: 4-1/8 in. (104 mm)

• Depth: 2-11/16 in. (69 mm)

Additional Benefits:

• Top-access adjustments, pilot outlet, and wiring for ease of installation

• ON-OFF lighting sequence for simple operation

• Pressure tapping port: 1/8 in. NPT with plug for pressure monitoring

• Compatible with a wide range of gas furnaces, boilers, and heaters

The Resideo VR8205M2823T offers robust performance, safety, and flexibility—making it a top choice for HVAC professionals and technicians seeking dependable ignition control in new installations or replacements.
