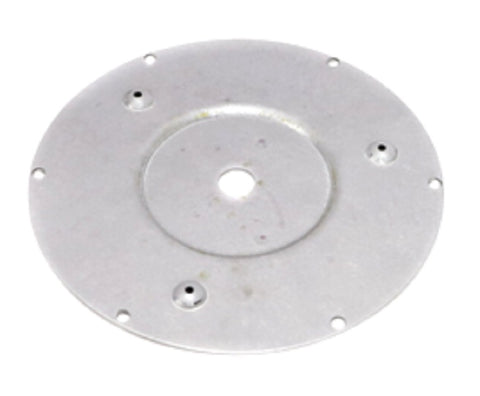

Reznor 194910 Mounting Plate

When you're dealing with a draft inducer assembly repair, the Reznor 194910 Ventor Motor Mounting Plate is the specified OEM component for maintaining the structural integrity of the combustion system. This 7-1/4" diameter venter motor mounting plate is engineered to provide a rigid, flat surface for the motor, ensuring precise shaft alignment and minimizing vibration during high-RPM operations. As a veteran-grade Reznor heater replacement part, this plate eliminates the risk of mounting flex that can lead to premature motor bearing failure or uneven wheel wear. For contractors handling commercial unit heater repair, this plate is a drop-in match for the Reznor UDAP and UDAS series, accommodating models ranging from 200 through 400. Utilizing a genuine Reznor 194910 venter plate guarantees that the inducer fan maintains the exact clearance required for optimal flue gas extraction and pressure switch activation. Stick with the factory-spec HVAC inducer motor mount to avoid the field-modification headaches and safety risks associated with generic alternatives.

Key Benefits:

• System Stability: High-gauge steel construction prevents warping under the extreme temperatures of the heat exchanger header.
• Precision Alignment: Engineered to hold the venter motor and wheel at the exact offset required for peak static pressure performance.
• Broad Compatibility: Seamlessly fits Reznor UDAP-200, UDAP-350, UDAS-225, and UDAS-400 gas-fired units.
• Vibration Dampening: Standardized mounting holes allow for a secure fit, reducing acoustic resonance through the furnace cabinet.

Common Questions Regarding the Reznor 194910:

Will this plate fit both UDAP and UDAS models?
Yes, the 194910 is the correct motor plate for both the UDAP power-vented and UDAS separated-combustion series, specifically covering the larger 200-400 MBH chassis sizes.

Does this include the motor mounting gasket or isolators?
This part is the mounting plate specifically. For a complete inducer overhaul, it is recommended to inspect and replace the venter motor isolators (part 194534) and the housing gasket to ensure a gas-tight seal.

Why is the plate size 7-1/4 inches?
This diameter is specifically designed to cover the inducer housing opening on high-capacity Reznor units, providing the necessary surface area for the larger venter motors used in 200k to 400k BTU models.
