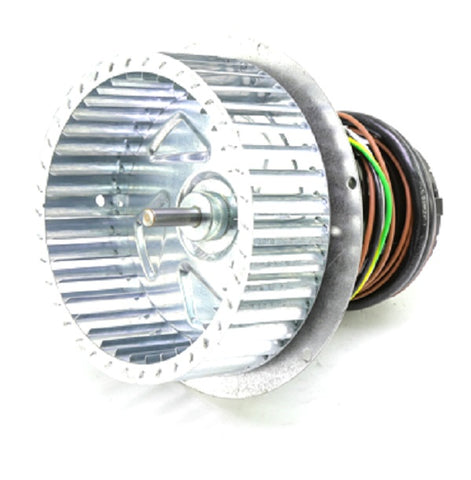

Reznor 220784 Venter Assembly

The Reznor 220784 Venter Assembly is a direct OEM replacement motor and wheel assembly designed for 115V combustion air systems. This high-performance draft inducer is specifically engineered for Reznor UDAP, UDAS, UDBP, and UDBS model unit heaters with heating capacities ranging from 200,000 to 250,000 BTU. Operating at 3200 RPM, this 0.17 HP inducer motor ensures the precise combustion air flow required for safe and efficient venting of exhaust gases, maintaining the integrity of the heat exchanger through consistent negative pressure.

This Reznor 220784 inducer is provided less shroud, allowing technicians to utilize existing hardware for a seamless fit into the combustion housing. Built by Nortek for maximum reliability in commercial and industrial HVACR applications, it features a 115V, 60Hz, single-phase motor that meets strict factory specifications for exhaust vent motor replacements. For contractors servicing Reznor unit heaters, this assembly provides a drop-in solution to resolve pressure switch lockout issues and ensure optimal burner performance.

• Precise Compatibility: Engineered for Reznor UDAP200-250, UDAS200-250, UDBP200-250, and UDBS200-250 series units.
• Optimized Performance: Delivers 3200 RPM and 0.17 HP to maintain the critical static pressure required for system operation.
• Heavy-Duty Construction: Features a robust motor and wheel assembly designed to withstand high-temperature flue gas environments.
• Simplified Installation: OEM-spec wiring and mounting configuration reduce field labor and ensure historical performance standards.

Which Reznor models use the 220784 venter assembly?
This specific assembly is utilized in Reznor UDAP, UDAS, UDBP, UDBS, UBX, UBZ, UDX, and UDZ models in the 200, 225, and 250 MBH sizes.

Is the shroud included with the 220784 assembly?
No, this version is the venter motor and wheel assembly specifically sold without the shroud. You must reuse your existing shroud or purchase it separately.

What are the electrical requirements for this motor?
The assembly operates on a standard 115V, 60 Hz, single-phase power supply, typical for residential and commercial unit heater circuits.
