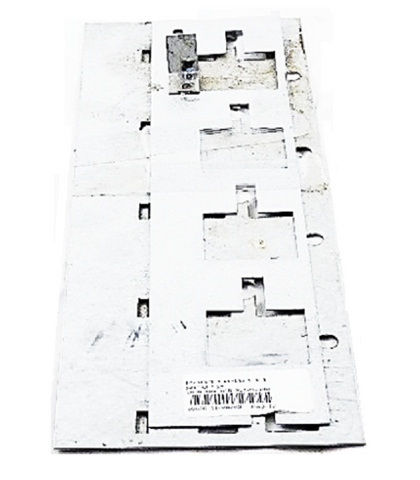

Reznor 46171 Shutter

As a seasoned technician, you understand that achieving the precise stoichiometric ratio is critical for the long-term reliability of Reznor XL125 and XL140 unit heaters. This replacement Reznor 46171 Burner Air Shutter is the exact OEM component required to calibrate primary air intake, ensuring a clean, stable flame and preventing the soot accumulation that can degrade heat exchangers. Fabricated from high-durability aluminized steel, this die-formed burner shutter is engineered to withstand the rigorous thermal cycling common in commercial and industrial HVAC applications.

When performing a Reznor XL burner assembly repair or a field gas conversion—particularly to propane—the burner air shutter adjustment is the primary manual control point for alleviating yellow-tipping or lifting-flame issues. The Reznor 46171 allows for fine-tuned metered combustion air, which is essential for maximizing steady-state efficiency and maintaining the proper manifold pressure. Installing this OEM Reznor Shutter ensures that your equipment operates within the manufacturer’s specified temperature rise parameters, protecting the combustion chamber from premature oxidation and ensuring peak heating system performance.

• Precise Airflow Control: Allows for exact adjustment of the primary air intake to optimize the gas-to-air mix for varied environmental conditions.
• OEM Compatibility: Specifically designed for seamless integration with Reznor XL125/140 burner assemblies, maintaining factory-certified operation.
• Industrial Durability: Constructed from heavy-duty materials to resist corrosion and distortion under high-heat combustion profiles.
• Combustion Efficiency: Critical for eliminating incomplete combustion, reducing CO emissions, and extending the operational life of the unit.

• How do I know if I need to replace the 46171 shutter? If the shutter is seized due to corrosion or the adjustment screw is stripped, you cannot properly tune the flame. Replacing it is necessary to prevent inefficient fuel consumption.
• Is this part required for propane (LP) conversions? Yes, the Reznor 46171 Shutter is often a mandatory component during field conversions to manage the different airflow requirements of LP gas versus natural gas.
• Will this shutter fit other Reznor series? This specific part number is verified for the XL125 and XL140 series; always verify your unit's serial plate before installation to ensure exact fitment.
