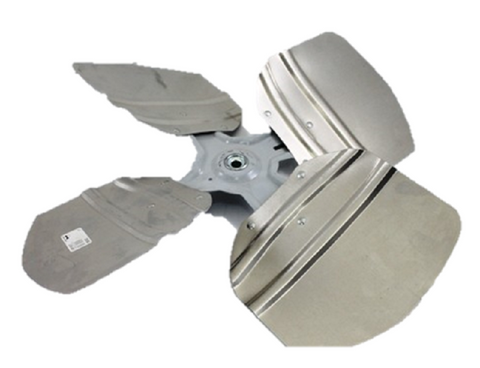

Reznor 96382 Fan Blade

The Reznor 96382 Fan Blade is a critical replacement component designed for high-performance air movement in industrial heating applications. This 22-inch diameter propeller features a 4-blade configuration precision-engineered to maintain optimal static pressure and airflow delivery. Built for durability, it utilizes a 1/2-inch bore for secure shaft mounting and operates with a Clockwise (CW) rotation (viewed from the discharge side). This heavy-duty fan blade is a direct fit for specific Reznor unit heaters and power vented systems where maintaining the correct cubic feet per minute (CFM) is essential for heat exchanger cooling. When performing a Reznor heater fan blade replacement, ensure the set screw is torqued to manufacturer specifications on the motor shaft to prevent vibration or mechanical failure. This OEM Reznor 96382 part ensures the system operates within its original design parameters, preventing limit switch tripping and ensuring efficient heat transfer across the assembly.

• Precision Balanced: Reduces bearing wear on the blower motor and minimizes operational noise.
• Direct OEM Fit: Eliminates the need for field modifications or shaft adapters during installation.
• Corrosion Resistant: Constructed to withstand the high-temperature environment of gas-fired unit heaters.
• Optimized Pitch: Engineered for specific HVAC ventilation requirements to ensure proper combustion air and heat distribution.

How do I verify the rotation of the Reznor 96382?
This blade is Clockwise (CW) rotation. Always determine rotation by looking at the blade from the air discharge side or the end of the motor shaft to ensure compatibility with your existing motor lead configuration.

What is the importance of the 1/2" bore size?
The 1/2-inch hub is designed to slide directly onto standard motor shafts used in Reznor power vented units. Using an incorrect bore size or bushing can lead to shaft damage and catastrophic fan failure.

Can I use this on a non-Reznor unit?
While this is a 22-inch 4-blade propeller, it is specifically pitched for Reznor equipment performance curves. Cross-referencing technical specs is required to ensure the motor's horsepower and RPM ratings can handle the blade load.
