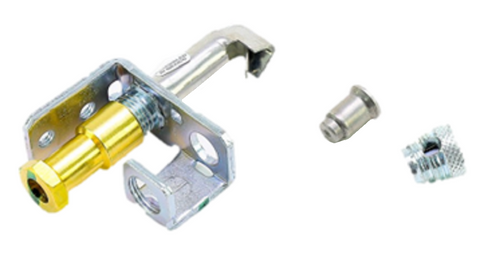

Robertshaw 1830-002 Pilot Uni-Kit

The Robertshaw 1830-002 Pilot Uni-Kit is a professional-grade universal pilot burner assembly designed to streamline service calls by replacing a wide array of OEM pilot burner configurations. Part of the Robertshaw 1830 Series, this incinerator-target pilot is engineered for maximum versatility, featuring a 90-degree left-hand flame pattern and a type 5 hood. The kit includes an essential 2CH to 2C adapter, allowing technicians to easily convert a threaded thermocouple or thermopile connection to a snap-in type. Its aerated pilot design is specific to modern HVAC requirements, utilizing primary air to produce a stable, clean-burning flame that resists linting and clogging. Whether you are servicing a gas furnace, boiler, or water heater, the various mounting bracket options—including the pre-installed number 6 bracket—ensure compatibility with most major appliance brands. This HVAC replacement pilot burner supports both thermocouple and thermopile configurations, making it a critical stock item for contractors maintaining older standing pilot systems.

Key Benefits for Technicians:

• Universal Compatibility: Works with all Robertshaw and most competitive thermocouples and thermopiles.
• Flexible Installation: Features a dual-orientation (horizontal or vertical) gas inlet and multiple mounting bracket options.
• Clean Operation: The aerated pilot design prevents lint accumulation, reducing the frequency of pilot-related pilot outages.
• Simplified Conversion: Included 1830-002 adapter eliminates the need for separate 2CH threaded or 2C snap-in components.
• Reliable Ignition: Engineered for stable flame-to-burner carryover to ensure consistent main burner ignition.

Common Questions:

Can this kit replace a standard non-aerated pilot?
Yes, the 1830-002 is designed to replace both aerated and non-aerated pilots, provided the flame pattern and mounting style align with the appliance manufacturer's specs.

Does this unit support electronic ignition?
This specific model is a standing pilot assembly but features an optional spark electrode port for systems requiring manual or piezo-assisted ignition.

What is the difference between the 2CH and 2C connections?
The 2CH utilizes a threaded nut for the thermocouple interface, while the 2C is a push-in style. This Uni-Kit includes the hardware to adapt to either connection type in the field.
