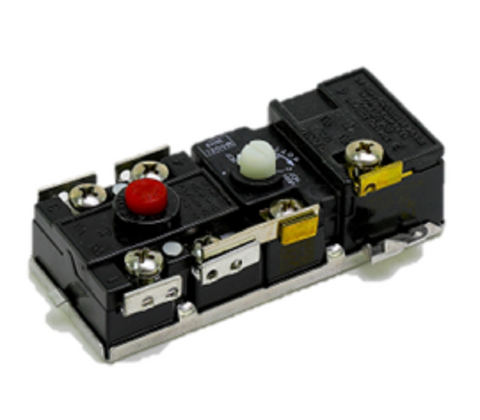

Robertshaw 5600-310 Thermostat

The Robertshaw 5600-310 Thermostat is a high-performance, surface-mount solution engineered for electric water heater applications in both domestic and commercial water heaters. This heavy-duty single element control integrates an automatic cycling thermostat and a manual reset high limit (ECO) within a compact 3-3/4 inch housing, ensuring a direct and secure clamp to the tank for accurate thermal sensing. Designed for universal replacement, the 5600-310 features a snap action mechanism that provides rapid kontact break to minimize arcing and extend component life. With a flexible operating voltage range of 120V to 480V AC and a 30A rating at 250V, this double pole unit is compatible with various HVACR configurations. The adjustable dial allows for precise temperature control between 120°F and 160°F, while the safety limit is factory-set to trip at 190°F. Field technicians value the terminal layout for fast and easy wiring, making it a reliable choice for restoring hot water system integrity.

• Dual-Function Control: Combines temperature regulation and high-limit safety protection in one compact unit.
• Broad Compatibility: Rated for 120V, 208V, 240V, 277V, and 480V AC, suitable for diverse commercial water heaters.
• Robust Construction: Snap action contacts and a double pole design handle high-wattage loads up to 7200W at 240V AC.
• Reliable Safety: Features a manual reset high-limit switch to prevent tank overheating and potential failure.
• Secure Mounting: Short 3-3/4" overall length ensures a firm, flat fit against the tank surface for precise monitoring.

Is the Robertshaw 5600-310 an OEM replacement for other brands?
Yes, it is a versatile water heater thermostat cross-referenced to replace parts from Apcom, Camco, Rheem, and Bradford White, specifically for single element systems.

What is the safety trip point for this thermostat?
The 5600-310 includes a limit control calibrated to trip at 190°F (±5°F), requiring a manual reset to restore power once the tank cools.

Can I use this on a multi-element water heater?
This specific model is engineered for single element heater configurations. For dual-element tanks, verify your wiring schematic to ensure proper high-limit protection for both elements.
