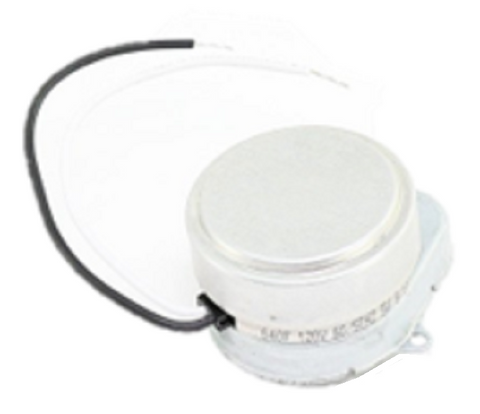

Schneider Electric (Erie) 30-118-B Motor

110/120V at 50/60 Hz Replacement Spring Return Two Position Motor for Erie Classic G and L Dampers Class "F" Rated (for Units Manufactured before January 2003)

Schneider Electric (Erie) 30-118-B Spring Return Two-Position Motor – Replacement for Erie Classic G and L Dampers (Pre-2003 Units)

The Schneider Electric (Erie) 30-118-B Motor is a high-performance, spring return, two-position replacement motor designed for Erie Classic G and L Dampers manufactured before January 2003. Built to meet demanding HVAC control requirements, this motor ensures precise, reliable operation for air handling systems in commercial and residential applications.

Key Features:

• Brand: Schneider Electric (Erie)

• Model/Part Number: 30-118-B

• Type: Accessory – Replacement Motor

• Voltage: 110/120V at 50/60 Hz

• Control Type: Two-position, two-wire spring return motor

• Actuator Mounting: Poptop®

• Actuator Compatibility: AG (General Purpose) or AH (High Performance) actuators

• Drive Time: 25 seconds max @ 60 Hz

• Spring Return Time: 9 seconds max

• Manual Override: Available on N.C. actuators only

• Auxiliary Contacts: N.O. contacts, 24–240 VAC (101mA min to 5A max)

• Wiring: 18" leads for easy installation

Performance and Specifications:

• Cv Range: 1.0 to 8.0

• Connections: FNPT, Sweat, or Inverted Flare (3/4" only)

• Flow Characteristic: Quick Opening

• Leakage Rating: ANSI Class IV (0.01% of rated capacity)

• Maximum Closeoff Pressure:

  • Cv 1.0–1.5: 60 psid (AG) / 75 psid (AH)

  • Cv 2.5–3.0: 40 psid (AG) / 50 psid (AH)

  • Cv 3.5–4.0: 25 psid (AG) / 30 psid (AH)

  • Cv 5.0: 20 psid (AG) / 25 psid (AH)

  • Cv 7.5–8.0: 17 psid (AG) / 20 psid (AH)

• Maximum Pressure Rating: 300 psig (2067 kPa)

• Media Compatibility: Hot/chilled water, ≤50% ethylene glycol, or 15 psig steam

• Media Temperature Range:

  • AG actuator: 32°–200°F (0°–93°C)

  • AH actuator: up to 250°F (121°C)

• Operating Temperature:

  • AG actuator: max ambient 104°F (40°C)

  • AH actuator: max ambient 169°F (77°C)

Construction:

• Valve Body: Brass

• Seat: Brass

• Stem: Nickel-plated

• Paddle: BUNA N

• Base Plate: Stainless Steel

• Cover: Aluminum

Additional Details:

• Body Options: Two-way or three-way mixing/diverting body patterns

• Connection Sizes: 1/2", 3/4", and 1"

Why Choose the Schneider Electric (Erie) 30-118-B Motor:
This OEM replacement motor is engineered for precision, durability, and easy installation. With its spring return design, fast actuation, and robust construction, it ensures dependable control of HVAC dampers and valves. Ideal for maintenance and retrofit applications, it’s a trusted choice for restoring performance in pre-2003 Erie Classic G and L damper systems.

Applications:
Perfect for HVAC systems requiring two-position spring return control in commercial, institutional, and residential environments.

Upgrade your system with the Schneider Electric (Erie) 30-118-B Motor — the trusted OEM replacement for reliable damper control and long-lasting performance.
