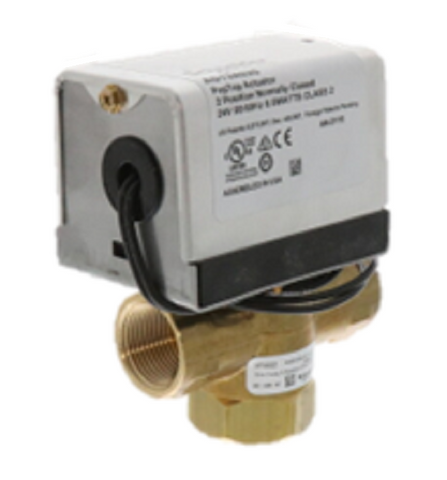

Schneider Electric (Erie) VT3322G13A020 Valve Assembly

Schneider Electric (Erie) VT3322G13A020 Valve Assembly – 3-Way 3/4" Zone Valve with Spring Return Actuator

The Schneider Electric (Erie) VT3322G13A020 Valve Assembly is a high-quality, 3-way zone valve designed for efficient and reliable control in HVAC systems. Perfect for a variety of applications, this spring return valve assembly ensures optimal fluid control with excellent performance across different system requirements. Featuring a 3/4" NPT connection and 3.0 Cv, it offers precise flow regulation for both heating and cooling systems.

Key Features:

• Valve Type: 3-Way, designed for precise fluid control and distribution.

• Size: 3/4" NPT, perfect for mid-sized HVAC systems.

• Flow Coefficient (Cv): 3.0, delivering efficient flow control for optimized system performance.

• Voltage: 24 VAC, suitable for most HVAC applications.

• Actuator: Erie PopTop Spring Return Actuator, ensuring reliable and smooth valve operation.

• On/Off Control: Two-position (Normally Closed), allowing for simple, dependable operation.

• Power Open or Close Time: 9 to 11 seconds, ensuring quick response and control.

• Spring Return Time: 4 to 5 seconds for swift reset after each cycle.

• Operating Temperature Range: 32 to 200°F (Fluid) and 104°F (Ambient) (0 to 93°C @ 40°C), ensuring reliable performance in a wide range of environments.

• Enclosure: NEMA 1, offering protection against dust and light contact in non-hazardous indoor environments.

• Cable Length: 18" appliance cable for easy installation.

Why Choose Schneider Electric VT3322G13A020 Valve Assembly?

• Durable and Efficient: Built to meet the demands of HVAC applications, this valve assembly offers long-lasting reliability with minimal maintenance requirements.

• Precise Control: The 3-way design with spring return actuator ensures accurate fluid flow regulation, improving overall system efficiency.

• Quick Response: The valve operates quickly with power and spring return times of just 9 to 11 seconds and 4 to 5 seconds, respectively, ensuring efficient heating and cooling.

• Versatile Use: Ideal for use in a wide variety of systems, providing flexible and effective fluid control.

• Easy Installation: With an 18" appliance cable and NPT connection, installation is quick and straightforward.

Perfect for Your HVAC System: Whether you’re upgrading your existing valve assembly or replacing a faulty unit, the Schneider Electric (Erie) VT3322G13A020 Valve Assembly is an excellent choice for reliable, energy-efficient zone control.

Order Now for fast shipping and exceptional customer support. Keep your HVAC system running smoothly and efficiently with the Schneider Electric VT3322G13A020 Valve Assembly.
