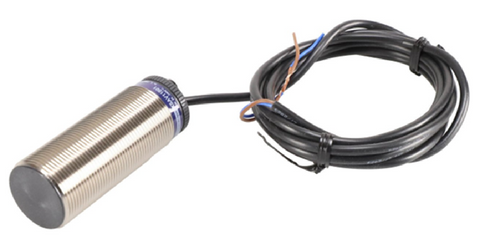

Schneider Electric (Square D) XSAV11801 Proximity Sensor

PROXIMITY SENSOR 24/240 AC/DC

Schneider Electric (Square D) XSAV11801 Inductive Proximity Sensor – 24/240V AC/DC

The Schneider Electric (Square D) XSAV11801 Proximity Sensor is a reliable inductive proximity sensor designed for non-contact detection of metallic objects in industrial and HVAC applications. Utilizing electromagnetic induction, this sensor detects changes in the magnetic field when a metal target enters the sensing area, activating the switch without physical contact.

Engineered for durability and accuracy, the XSAV11801 is ideal for rotation monitoring, fan speed verification, and damper position detection in HVAC and automation systems. Its non-contact operation reduces mechanical wear, improves system reliability, and supports efficient building automation.

Key Features & Benefits

• Manufacturer: Schneider Electric (Square D)

• Part Number: XSAV11801

• Sensor Type: Inductive Proximity Sensor

• Non-contact metallic object detection for long service life

• Electromagnetic induction technology for accurate sensing

• Wide operating voltage range: 24–240V AC/DC

• Enhances system automation and monitoring reliability

• Suitable for industrial and HVAC environments

Technical Specifications

• Operating Voltage: 24–240V AC/DC

• Detection Method: Inductive (metal targets only)

• Sensing Technology: Electromagnetic induction

• Output Type: Proximity switch

• Application Function: Rotation monitoring, position sensing

Applications

• HVAC systems (fan speed monitoring, damper position detection)

• Industrial automation and control panels

• Equipment rotation and motion monitoring

• Non-contact metallic object sensing applications

Product Overview

The Schneider Electric XSAV11801 Inductive Proximity Sensor delivers dependable, maintenance-free performance for detecting metallic objects without physical contact. Its robust design, wide voltage compatibility, and proven Square D quality make it an excellent choice for HVAC professionals and automation specialists seeking accurate and long-lasting proximity sensing solutions.
