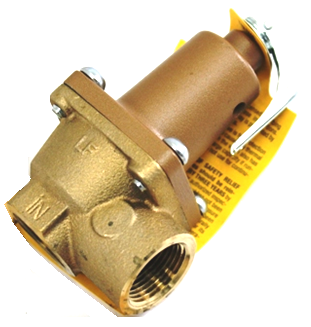

Watts 0121470 Relief Valve

The Watts 0121470 (LF174A) 3/4" water pressure relief valve is a critical safety component designed for hot water heating boilers and hydronic systems. Engineered with a lead-free copper silicon alloy body, this valve ensures compliance with low-lead regulations while providing a high-capacity discharge of 1,320,000 BTU/hr at a fixed 75 PSI set pressure. The large diaphragm-operated design minimizes the risk of seat sticking, while the non-mechanical cooling of the discharge prevents sediment buildup. For technicians replacing older units, this model directly replaces 0274598, 0360830, and 174A-3/4-75. The 3/4" NPT threaded inlet and outlet connections facilitate straightforward integration into standard HVAC hydronic loops. Its reinforced EPDM diaphragm and heavy-duty stainless steel spring are built to handle the thermal expansion stresses of high-output commercial and residential boilers, maintaining system integrity behind the boiler’s primary relief requirements.

Key Benefits for Technicians:

• High BTU Rating: Rated for up to 1,320,000 BTU/hr, making it suitable for large-scale hydronic heating applications.
• Lead-Free Construction: The LF174A series utilizes lead-free copper silicon alloy to meet stringent potable water and heating system standards.
• Broad Compatibility: Serves as a direct replacement for legacy models including 375-3/4-75 and LF174A-3/4-75, simplifying truck stock management.
• Fail-Safe Design: Features a high-lift disc and reinforced diaphragm to ensure positive reseating and reliable pressure relief during over-pressure events.

Common Installation Questions:

What is the maximum operating temperature for this valve?
The Watts LF174A is designed to operate at a maximum temperature of 250°F (121°C), ensuring performance stability in high-temperature boiler environments.

Can this valve be installed in a horizontal orientation?
For proper drainage and to prevent sediment interference, it is recommended to install the valve with the stem in the vertical position, following standard hydronic piping codes.

Is the 75 PSI setting adjustable?
No, this is a fixed-pressure relief valve factory-set at 75 PSI to protect systems with specific pressure requirements beyond standard 30 PSI residential setups.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
