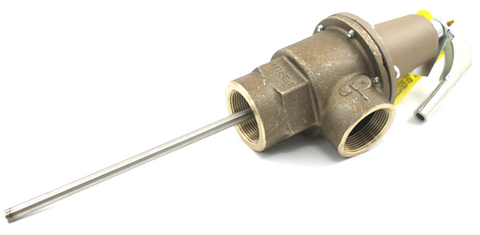

Watts 0121604 Regulator

As a veteran contractor, you know that commercial water heater protection hinges on the reliability of the 1.5-inch Watts 0121604 temperature and pressure relief valve. This LF340X-8-125 model is the industry standard for high-capacity lead-free relief valves, engineered specifically for large-scale hot water supply tanks and heaters. With a massive 5.403K BTU steam discharge capacity and a precise 125 PSI pressure relief setting, this valve provides critical failsafe protection against catastrophic tank failure and excessive thermal expansion. The 8-inch stainless steel extension thermostat ensures the sensing element reaches the top six inches of the tank where water is hottest, preventing sluggish response times common with shorter probes.

The Watts LF340X-8 features a lead-free copper silicon alloy body and a non-mechanical seat-to-disc alignment, facilitating automatic re-seating after operation to minimize downtime. This unit directly replaces the legacy Watts 0348450 and is built to withstand the rigors of mechanical rooms with tamper-resistant bonnet screws and a heavy-duty test lever for routine maintenance sweeps. Whether you are performing a commercial water heater repair or a new industrial installation, the NPT connections ensure a seamless fit into existing tappings, maintaining system integrity and compliance with lead-free plumbing mandates.

• High Volume Discharge: Rated for systems requiring 5,403,000 BTU/hr capacity to handle massive thermal loads.
• Lead-Free Reliability: Constructed from copper silicon alloy to meet strict potable water safety standards.
• Advanced Sensing: The 8-inch extended thermostat eliminates thermal lag by sensing core tank temperatures accurately.
• Automatic Reseating: Engineered for repeated cycles without manual intervention, provided the seat remains clear of debris.
• SentryPlus Alert Ready: Compatible with add-on flood sensors to detect and alert crews of excessive discharge events via BMS integration.

Can I use this 125 PSI valve on a 150 PSI rated tank?
Yes, provided the water heater\'s maximum allowable working pressure is 125 PSI or higher. Always select a relief valve setting that does not exceed the tank\'s rating.

Is this a direct replacement for the Watts 0348450?
Correct. The 0121604 LF340X-8-125 is the current lead-free alternative for the discontinued 0348450 series, maintaining the same 1.5" footprint and performance specs.

Why is my T&P valve dripping after installation?
Continuous dripping is most commonly caused by thermal expansion in a closed system or debris trapped on the valve seat. Verify system pressure and ensure an expansion tank is installed if backflow preventers are present.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
