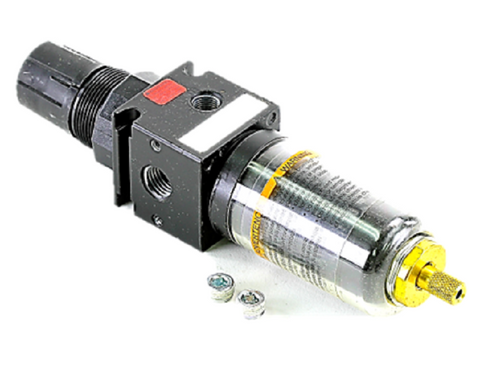

Parker Watts Fluid Air B35-02WHC Regulator

1/4"FiltReg 0-125# 20micronFil

Parker Watts B35-02WHC Regulator | 1/4" NPT Filter Regulator | 0-125 PSI | 20 Micron Filter | 35 SCFM Max Flow

The Parker Watts B35-02WHC is a high-performance integral filter regulator designed for efficient air pressure control and filtration in pneumatic systems. Part of the trusted B35 Series, this 1/4" NPT filter regulator provides a reduced pressure range of 0-125 PSI and supports a maximum inlet pressure of 250 PSI, ensuring precise and reliable performance.

Equipped with a 20-micron polypropylene filter element, the B35-02WHC efficiently removes contaminants, extending the life of downstream equipment. It features a zinc bowl with sight glass (1.5 oz capacity) for easy monitoring and a manual drain for convenient maintenance.

Key Features:

• Pipe Size: 1/4" NPT

• Pressure Range: 0–125 PSI

• Max Inlet Pressure: 250 PSI

• Max Flow Rate: 35 SCFM

• Filter Rating: 20 Micron

• Bowl Material: Zinc with sight glass

• Drain Type: Manual

• Gauge Ports: 2 x 1/8" NPT (gauge not included)

• Body Material: Zinc

• Diaphragm/O-Ring Material: Buna-N

• Adjustment Type: Knob

• Relieving: Yes

• Made in USA

Applications: Ideal for compressed air systems, automation equipment, manufacturing, and industrial applications requiring consistent air pressure and filtration.

Note: Gauge is not included. This unit is not panel mountable.
