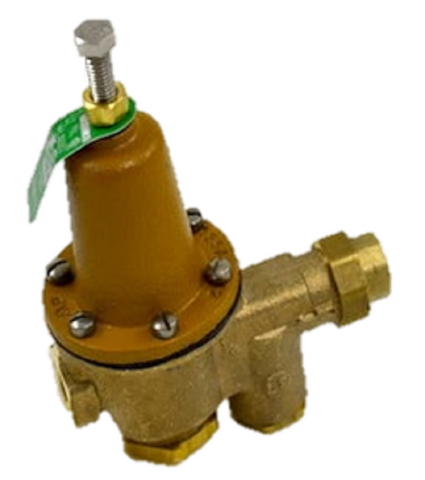

Watts 0009100 Valve

The Watts 0009100 is the professional-grade 1/2-inch water pressure reducing valve from the LFU5B-Z3 Series, serving as the direct lead-free replacement for the legacy 0052977 model. Engineered for commercial, industrial, and residential applications, this valve features a lead-free copper silicon alloy body to meet strict potable water requirements. With an adjustable range of 25 to 75 psi and a factory standard setting of 50 psi, it provides precise downstream pressure control to protect sensitive fixtures. The unit handles up to 300 psi maximum working pressure and is rated for operating temperatures between 33°F and 160°F. Contractors value the integral stainless steel strainer and sealed spring cage, which allow for inline servicing without specialized tools. The inclusion of a thermal expansion bypass prevents excessive pressure buildup caused by water heating, ensuring system-wide stability.

Key Benefits for Contractors:

• Maintenance Efficiency: The modular seat design and removable stainless steel strainer facilitate rapid inline cleaning and service.
• Code Compliance: Built with a lead-free copper silicon alloy body to ensure compliance with safe drinking water standards.
• System Protection: The thermal expansion bypass feature reduces the risk of blow-offs and equipment damage in closed systems.
• Standardized Fit: Standard 1/2" NPT female threaded inlet and outlet connections ensure compatibility with existing piping layouts.

Common Questions:

How do I adjust the pressure on the Watts LFU5B-Z3?
Locate the adjustment bolt on the top of the spring cage. Loosing the nut and turning the bolt clockwise increases downstream pressure, while counter-clockwise decreases it. Use a gauge to confirm the 25-75 psi range.

Does this valve require a separate strainer?
No, this model features an integral stainless steel strainer designed to catch debris before it affects the seat, though periodic cleaning of the internal screen is recommended.

Can the 0009100 be used in hot water applications?
It is rated for temperatures up to 160°F (71°C), making it suitable for standard domestic hot water loops and tempered water systems.
