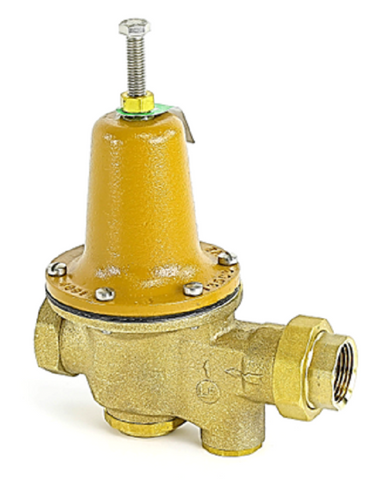

Watts 0009154 Valve

The Watts 0009154 (Series LFU5B-Z3) is a 1-inch lead free water pressure reducing valve designed for high-capacity flow in commercial, industrial, and residential applications. Engineered with a lead free cast copper silicon alloy body, this valve effectively manages incoming supply pressures up to 300 psi, protecting downstream plumbing components from high-pressure surges and reducing overall water consumption. As the direct updated replacement for legacy models 0049524, 0053201, and U5B-1, it features a sealed spring cage with stainless steel screws, making it ideal for outdoor or pit installations where environmental exposure is a factor.

This technician-grade NPT threaded water regulator offers an adjustable reduced pressure range of 25 to 75 psi, factory-preset at 50 psi. The internal reinforced EPDM diaphragm and replaceable seat module allow for full in-line serviceability without removing the valve body from the piping system. It includes an integral stainless steel strainer to filter out debris and a built-in thermal expansion bypass to prevent excessive pressure buildup in closed systems. This unit meets ASSE 1003 and CSA B356 standards, ensuring compliance with stringent lead free installation requirements for potable water systems.

• Universal Compatibility: Serves as the official lead free replacement for series U5B-1, U5B-Z3-1, and 0049524.
• Durable Construction: Built with a corrosion resistant coating and stainless steel trim to withstand harsh water conditions.
• Simplified Maintenance: The replaceable seat module and removable strainer are accessible without special tools, reducing downtime during service calls.
• Thermal Expansion Control: Features a bypass check valve to equalize pressure, protecting water heaters and fixtures in closed loops.
• Versatile Mounting: The sealed spring cage design supports both vertical and horizontal installation in vaults or mechanical rooms.

Can I install the Watts LFU5B-Z3 in a vertical orientation?
Yes, this valve is designed for installation in either horizontal or vertical positions. Always ensure the flow arrow on the brass body points in the direction of the water supply.

How do I adjust the pressure on the 0009154?
Loosen the lock nut on the spring cage and turn the adjusting bolt clockwise to increase downstream pressure or counterclockwise to decrease it. Professional technicians should always verify settings using a pressure gauge.

Does this valve replace the standard U5B model?
Yes, the 0009154 is the compliant lead free version of the older U5B series, designed to meet current environmental and plumbing codes while maintaining the same 1-inch footprint.
