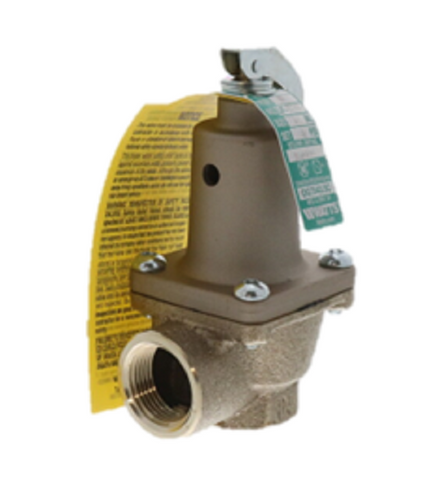

Watts 0121463 Relief Valve

The Watts 0121463 (Model LF174A) is a high-capacity pressure relief valve designed specifically for hot water heating boilers and hydronic systems. Featuring a 3/4 inch NPT inlet and outlet, this valve is engineered with a lead-free copper silicon alloy body to meet stringent potable water requirements while ensuring long-term corrosion resistance. It is factory set to 40 PSI and provides a massive steam discharge capacity of 800,000 BTU/hr, making it a critical safety component for commercial and residential boilers. This model serves as the direct lead-free replacement for 0274479, maintaining the same physical dimensions for seamless field retrofits. As a veteran-grade HVAC safety valve, it utilizes a non-sticking cloth-reinforced EPDM diaphragm and a high-temperature resistant silicone disc to ensure a consistent, leak-free seal under demanding thermal cycling. Pro-tier contractors rely on the Watts LF174A 40# for its robust mechanical lift and reliable overpressure protection in closed-loop hydronic systems.

Technical Specifications and Benefits

• Lead-Free Construction: Complies with plumbing codes using a lead-free copper silicon alloy to prevent system contamination.
• High Discharge Capacity: Rated at 800,000 BTU/hr to handle high-output boiler systems.
• Direct Drop-In Replacement: Specifically replaces the legacy Watts 0274479 model without piping modifications.
• Durable Internal Sealing: Features a high-temperature silicone disc and reinforced EPDM diaphragm for extended service life in 40 PSI applications.
• NPT Threading: Standard 3/4" female connections ensure compatibility with standard boiler manifolds and discharge piping.

Common Contractor Questions

Is the LF174A compatible with glycol-based systems?
Yes, the EPDM diaphragm and silicone disc materials are compatible with standard propylene and ethylene glycol concentrations used in hydronic heating loops.

Can this relief valve be installed horizontally?
For proper mechanical operation and gravity drainage of the discharge line, it is a standard field requirement to install the valve in a vertical position with the discharge piping directed downward to a drain.

What is the difference between the 0121463 and the 0274479?
The 0121463 is the modern, lead-free version of the discontinued 0274479. It maintains the 40 PSI rating and 3/4" sizing but utilizes materials that comply with the Lead Free Reduction of Lead in Drinking Water Act.
