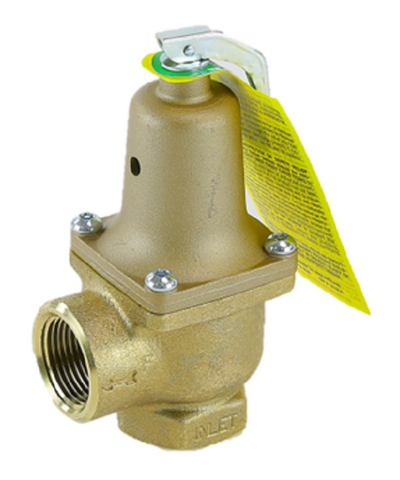

Watts 0121504 Valve

The Watts 0121504, officially designated as the LF174A-125 1, is a heavy-duty, lead-free boiler pressure relief valve engineered for high-capacity protection in hot water heating and domestic supply systems. This 1-inch NPT valve is ASME Section IV rated, featuring a 3,215,000 BTU/hr steam discharge capacity at its fixed 125 psi setting. Constructed with a lead-free copper silicon alloy body, it ensures compliance with modern potable water regulations while providing superior resistance to corrosive conditions and sediment buildup. For technical and field-cross referencing, the Watts 0121504 is functionally identical to the 174A-1-125 and LF174A-1-125 models, though this specific iteration utilizes advanced lead-free materials to meet current contractor standards.

Designed for emergency safety relief rather than serving as an operating control, the Watts LF174A-125 utilizes a non-mechanical seat-to-disc alignment and a stainless steel spring to prevent sticking or freezing, even in high-temperature environments reaching up to 250°F. The NPT threaded female inlet and outlet connections provide a standard 1-inch fit for a wide range of commercial and industrial boilers. Professionals often seek this ASME boiler relief valve for its reliable automatic reseating and the integrated test lever, which allows for mandatory annual maintenance checks. This model is a critical safety component for protecting pressurized vessels from catastrophic failure due to thermal expansion.

Key Benefits

• High BTU Capacity: Rated for up to 3,215,000 BTU/hr discharge, making it suitable for large-scale boiler equipment.
• Lead-Free Construction: The copper silicon alloy body ensures compliance with federal lead-free requirements for domestic hot water systems.
• Sediment Resistance: Raised seat design prevents water and sediment from being trapped, reducing the risk of valve fouling or failure.
• Fixed Pressure Safety: Pre-set at 125 psi to ensure precise emergency pressure relief without the need for field adjustment.
• Durability: Features a high-temperature resistant water seal and a stainless steel spring for lasting performance in demanding HVACR applications.

Common Questions

Is the Watts 0121504 interchangeable with the LF174A-1-125?
Yes, the 0121504 is the ordering code for the 1-inch LF174A set at 125 psi. It is the direct lead-free replacement for the legacy 174A-1-125 series.

Can this valve be used as a primary pressure regulator?
No. As a veteran technician would tell you, this is an emergency safety relief valve only. It should never be used as an operating control for system pressure.

What size discharge line is required for this valve?
The discharge line must match the 1-inch outlet size of the valve and should be pitched downward to a safe disposal point to prevent water from being trapped in the seat.
